Beverage PET Line

3000-15000 bph Beverage PET line
or 18000-54000 bph Beverage PET line

Complete Beverage PET line 3D diagram

At King Machine company, we offer individual equipment or a combination of different equipment as a solution for your factory needs. Equipped with the expertise and professionalism, We will confirm more details with you as soon as possible to offer customized solution for you .

Water Treatment
Stretch Blow Moulding
Filling And Capping
Labelling And Printing
Inspection
Conveyor Line
Packing
Palletising

Water Treatment System

A brand-new, fully automated water treatment production line is available for producing pure water and mineral water. It incorporates top-tier electrical components from leading European and American brands like Clarke and Siemens. This intelligent system not only saves labor costs but also allows customers to adjust the equipment to produce drinking water according to their specific requirements. It's a smart system worthy of customers' choice.

Stretch blow moulding

King machine company is one of the few companies who own core technology of PET blow molding and filing machines in China. Based on the full experiences of turnkey projects, We have integrated the blowing and filling technologies to become one fundamental structure of combi-block technology.

Through the innovation of online molding technology and blowing and filling technology, Reducing additional equipment such as conveying, empty bottles sort, stack and storage and improving the sanitary condition of packaging, reducing the cross contamination. Comparing with traditional technology, the whole line efficiency increased 25%, equipment investment saving more than 20%, floor space saving 35%, energy consumption decreased more than 30%, water saving more than 35%, cost saving and spare parts consumption decreased about 50%, So as to reduce the general production cost of beverage enterprises.

Technical features：
1. High production efficiency
2. High pressure air recovery system, high pressure air can be recovered more than 30%
3. Space saving
4. High automation and intelligence
5. Excellent and stable product quality
6. High hygienic
7. Low production cost
8. Low noise of machine

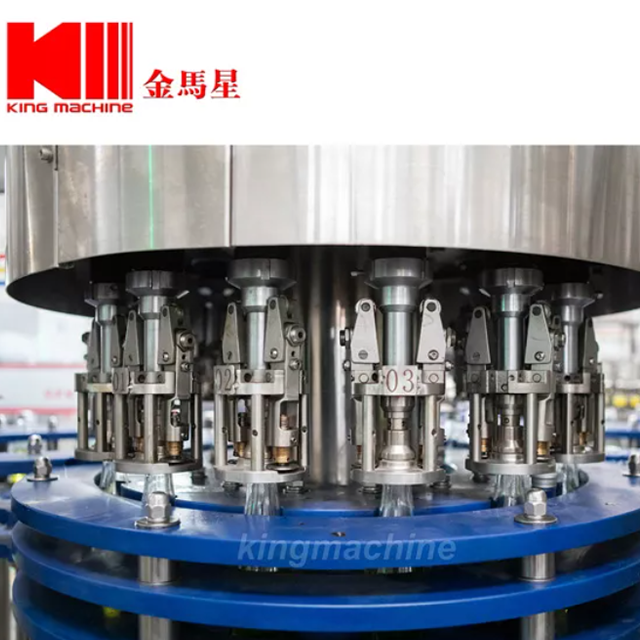

Filling

A complete and versatile range to meet the most varied requirements in terms of both productivity (monoblocks with up to 180 valves) and products to process: still and carbonated water, soft drinks, milk and dairy products, beer, sport and energy drinks, tea and juice.

Range
Filling monoblocks The range includes various filling technologies:
mechanical gravity filler.
the new electronic filler modular range
electronic volumetric gravity filler for large containers.
mechanical isobaric level filler.
Capper：
1. Mechanical or volumetric electronic filling valve;
2.Tubular type filling bowl no dead angle, easy to clean;
3. Automatic CIP, easy for operation and maintenance;
4. Raise filling temperature above 12~15°C for energy saving;
5. Volumetric valve leads to high filling precision,5~6 times higher than mechanical valve;
6. Volumetric valve filling can realize fast changeover, no vent tubes.

Capping

A complete and versatile range to meet the most varied requirements in terms of both productivity (monoblocks with up to 180 valves) and products to process: still and carbonated water, soft drinks, milk and dairy products, beer, sport and energy drinks, tea and juice.

Range
Filling monoblocks The range includes various filling technologies:
mechanical gravity filler.
the new electronic filler modular range
electronic volumetric gravity filler for large containers.
mechanical isobaric level filler.
Capper：
1. Mechanical or volumetric electronic filling valve;
2.Tubular type filling bowl no dead angle, easy to clean;
3. Automatic CIP, easy for operation and maintenance;
4. Raise filling temperature above 12~15°C for energy saving;
5. Volumetric valve leads to high filling precision,5~6 times higher than mechanical valve;
6. Volumetric valve filling can realize fast changeover, no vent tubes.

Labelling And Printing

King Machine LABELLING offers a complete range of auto-matic labelling machines for glass, plastic and metal containers, for the beverage, food, household / per-sonal care, wines/ spirits, chemical, pharmaceutical, and packaging industries.

A key mission of KingMachine Labelling is to invest in tech-nological innovations enabling end-users to maximise efficiency and reduce costs.

Efficiency, reliability and accuracy
High efficient labelling process (speed up to 54,000 BPH);
Continuous production;
Easy use for the operators of the machine.
Applications
Plastic Bottle
Glass Bottle
Cans
Metal Bottle

Inspection

The capping/liquid level quality inspection equipment applies CCD visual inspection and DSP

image processing technology.

The capping/liquid level quality inspection equipment applies CCD visual inspection and DSP image processing technology, multi-sensor information fusion and precise visual positioning of high-speed moving objects, multi-level optical reflection main imaging technology and wavelet neural, visual inspection Recognition and other technologies can realize the functions of liquid level, high cover, tilted cover, broken cover, missing ring, no cover, missing code, and other quality inspections and perform the functions of rejecting defective products.

Conveyor system

Because the output of your line greatly depends on the conveying systems, KingMachine conveyors are designed around a modular mechatronic approach ensuring their reliability and adaptability to production changes.

KingMachine conveyors handle a wide range of container shapes and formats in different configurations: PET or glass bottles, metal cans, beverage cartons.
Easy line integration
Simple wiring to existing interfaces thanks to hybrid cabling
Compliance with most common technical standards, machine specifications and line networks
Easy integration to automation architecture centralizing line parameters
Product care
Flowing conveying preventing pressure on the products and obstructions on the line
Conveying parameters adapted to the characteristics of the container to convey
Dry or wet lubrication for a smooth conveying
Ultrasonic sensor improving line reliability compared to traditional technologies

Bottle Shrink Wrapping Machine

Packaging system has been designed with modular units, with the large majority of structural elements shared between the different models. Common packaging methods on the market are pe film packaging and carton packaging.

Within the Packaging system range, although all products have the same general characteristics, we have identified five main configurations, which are optimized for specific applications.

APPLICATIONS
Plastic Bottle
Glass Bottle
Cans
Metal Bottle
Tetra Pak Carton
Aluminum bottles

Robotic Palletizing

The machine is mainly used for filling carbonated drink. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles.

Technical Features
Product infeed can be orthogonal or in line, often used for high operating speeds.
The whole range is designed to accept a variable number of product infeeds (from 1 to 4).
All models can be integrated with the robotized Fastlayer layer preparation device.
Depending on the customers’ production requirements, multi-pallet or multi-layer versions are available.
Fully automatic system requiring limited operator intervention, operating in complete safety.
Extremely simple, complete operator control panel. It can be integrated with an advanced control and supervision system.
Possibility to handle all main pallets on the market trouble-free, with highly customizable solutions (half and quarter pallets, displays, dollies, etc.).
Output
Up to 330 layers/hour.;Up to 420 layers/hour with the double mobile platform solution.
Products that can be processed
Packs Cartons Crates Loose PET Bottles
Loose Glass Bottles Cans Tin Containers

Choose the right equipment for your beverage factory,

suitable for carbonated drinks factorys and breweries.

Beverage Pretreatment Machines

The pretreatment system is specially designed to produce juice, carbonated soft drinks, energy drinks, tea drinks, etc, which includes types of equipment, such as hot water system, sugar melting system, sugar blending system, beverage mixing system, CIP system, plate or tube UHT sterilizers.

As a long-standing supplier of various single-machines and complete-line equipments for beverage treatment to beverage companies at abroad, King Machine company can offer engineering consulting and technological design services tailored to the needs of clients, such as planning of equipment configuration, layout, process and auxiliary equipment for manufacturing shops.

Beverage Mixer (Flow Meter Type)

Operation principles: After deoxidized by vacuums system, the product water is output through pump and flow meter. After cooled water enters into the carbonation tank through mixing pump and control valve. Before entering into the tank, the mixing liquid is treated with pre-carbonization course. The CO2 content is controlled by flowrate control valve. At the moment the carbonation tank is charged with CO2 counter-pressure gas, and the sparkling water is stored in the bottom of the carbonation tank, and then pumped to the filler.

The flow meter blender is a real sense of automatic mixing. It has automatic control systems for mixing ratio, temperature, carbonization and pressure. With human-computer interface, operators can adjust the parameter values to change the CO2 content of the product. If there is any fault, it can stop and give an alarm automatically.

Labelling Machine For Glass bottle

Labeling Solution / Labeling Machine
King Machine LABELLING offers a complete range of auto-matic labelling machines for glass, plastic and metal containers, for the beverage, food, household / per-sonal care, wines/ spirits, chemical, pharmaceutical, and packaging industries.

A key mission of KingMachine Labelling is to invest in tech-nological innovations enabling end-users to maximise efficiency and reduce costs.

Efficiency, reliability and accuracy
High efficient labelling process (speed up to 50,000 BPH); Continuous production;
Easy use for the operators of the machine.
APPLICATIONS
Plastic Bottle Glass Bottle Cans Metal Bottle

Pasteurizer Tunnel

We can provide customers with a Pasteurizer Tunnel suitable for beverage PET lines with a capacity of 3000-54000bph.

For example, for a 30000bph carbonated drink bottling line, the total treatment time is 45 minutes, the effective treatment area is 95.36 square meters, electricity power consumption is 24.25 kW, steam consumption is 1500 kg, and the cooling capacity of the cooling column is 100 m³/h.

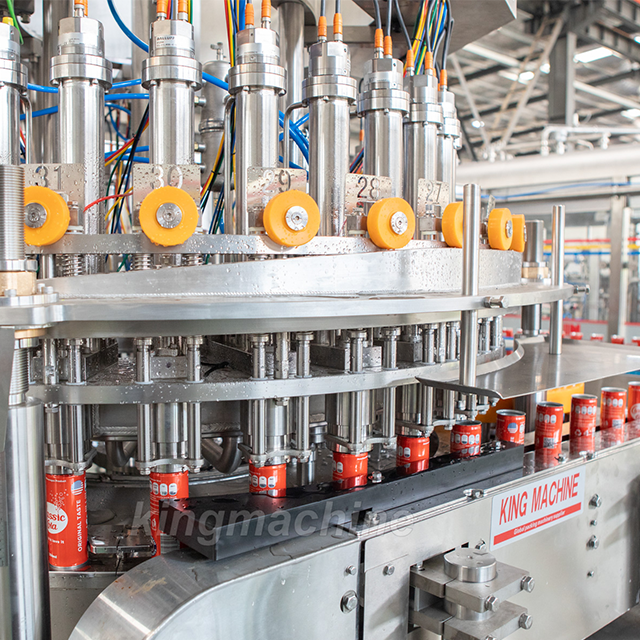

Selected References For Canning Lines

As a solutions supplier for the beverage plants, King Machine company also offers just the right canning lines solutions. Our portfolio comprises all machines from filling to Depalletizer, Filling and Capping, Inspection, labelling, packing to Robotic Palletizing. King Machine company covers an extensive output range: from 3,000 to 54,000 cans per hour.
