Edible oil bottle filling machines: quality, reliability, productivity

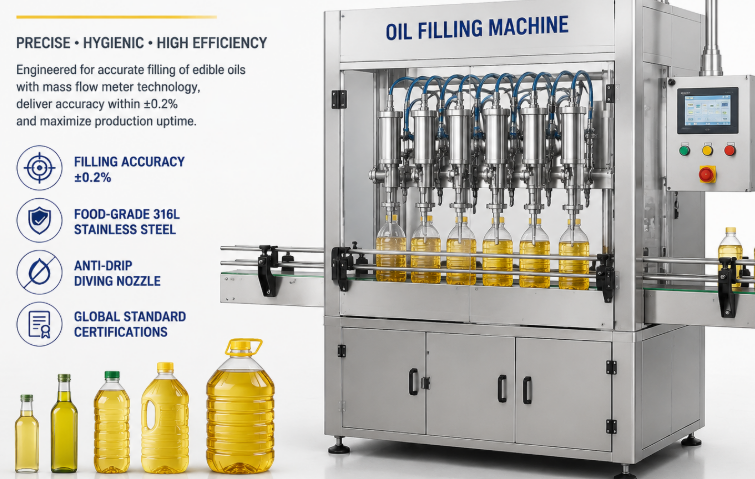

High-performance edible oil bottle filling machines incorporate precision mass flow meters or servo-driven piston mechanisms, robust food-grade 316L stainless steel construction, and anti-drip diving nozzle technology to deliver filling accuracy within ±0.2%, eliminate product waste, achieve hygiene compliance across global standard certifications, and maximize operational uptime for high-viscosity food processing facilities.

Table of Contents

1. Introduction & Market Context

2. Architectural Fundamentals of Oil Filling Machines

3. Key Engineering Features for Quality & Hygiene

4. Optimizing Productivity & Operational Reliability

5. Regional Standards & European Market Preferences

6. Comparative Machinery Specification Matrix

7. Conclusion & Strategic Recommendations

Introduction & Market Context

An automated oil filling machine is an essential industrial solution designed to precisely meter, dispense, and containerize edible fats and oils under strict hygienic conditions.

The global edible oil industry operates under rigorous regulatory oversight, demanding unprecedented levels of precision, sanitation, and efficiency. Processing plant managers and packaging engineers face continuous challenges associated with varying oil viscosities—ranging from light sunflower and canola oils to dense olive, palm, and coconut oils—temperature-induced volumetric expansion, and strict anti-drip requirements. Utilizing specialized equipment like a high-speed oil filling machine ensures minimal product give-away, consistent fill levels, and absolute structural integrity across glass, PET, and HDPE container formats.

Productivity in modern oil bottling facilities depends heavily on minimizing downtime and line changeover intervals. Advanced bottling lines integrate modular architectures, allowing seamless handling of container sizes ranging from 250ml retail glass bottles to 5L bulk PET jugs, and extending up to heavy-duty industrial drums. To review versatile packaging machinery configurations applicable to larger industrial scales, operators frequently analyze automatic industrial fluid filling line systems to understand the mechanical principles of high-capacity liquid distribution.

Market requirements also dictate that machinery must eliminate exposure to atmospheric oxygen during the filling phase. Nitrogen purging systems are frequently built into the filling cycle to displace oxygen, preventing oil oxidation and significantly extending product shelf life. Consequently, investments in state-of-the-art liquid packaging machinery directly correlate with improved profit margins, brand consistency, and regulatory compliance.

Operational Tip - Temperature Compensation: Edible oils undergo thermal expansion of approximately 0.07% to 0.09% per degree Celsius. Modern filling systems should incorporate real-time temperature sensing and automatic volumetric compensation within the PLC control program to maintain precise net mass dosing across fluctuating ambient plant temperatures.

Architectural Fundamentals of Oil Filling Machines

Oil filling machines utilize three primary metering architectures: servo-driven volumetric piston filling, electromagnetic/mass flow meter filling, and electronic net-weight filling.

Selecting the appropriate core filling mechanism is the critical first step in line design. Volumetric piston systems use precision-machined cylinders and servo-controlled pistons to draw and displace exact oil volumes. Piston fillers excel at handling viscous products and offer robust performance in demanding ambient conditions. However, because they measure by volume, density changes caused by ambient temperature shifts require calibration adjustments to maintain accurate dosing across long production shifts.

Flow meter filling technology—specifically Coriolis mass flow meters—has emerged as the preferred solution for premium edible oil operations. Coriolis meters directly measure fluid mass rather than volume, rendering the system impervious to temperature, density, and viscosity fluctuations. This results in filling accuracy reaching ±0.1% to ±0.2%. Furthermore, mass flow meter systems feature no moving mechanical parts in contact with the product, greatly reducing mechanical wear and simplifying automated Clean-In-Place (CIP) procedures.

Net-weight filling systems weigh each container continuously during dispensing using high-speed load cells. The filling valve operates in two stages: a high-speed bulk fill followed by a precise trickle finish. This mechanism guarantees that the exact net weight stated on the product label is delivered, making it ideal for large-capacity containers such as 5L to 20L containers. For processing facilities seeking high-speed throughput and specialized container handling, adopting engineered automated liquid filling equipment guarantees precise weight control while maintaining continuous operational velocity.

Key Dosing Architecture Comparison

1. Servo Piston Filling: High mechanical force, excellent for thick unheated oils, straightforward mechanical maintenance, moderate initial capital expenditure.

2. Mass Flow Meter Filling: Non-contact mass measurement, self-compensating for density and temperature changes, minimal maintenance, premium filling speed.

3. Net-Weight Load Cell Filling: Absolute weight accuracy guarantee, immune to container weight variations, highly suited for medium-to-large bulk containers.

Maintenance Insight - Seal Integrity: Viton and PTFE seals are required for edible oil applications. Standard NBR seals degrade when exposed to fatty acids over prolonged periods, leading to micro-leaks and valve stem stickiness. Inspect and replace pneumatic valve seals every 2,000 operating hours.

Key Engineering Features for Quality & Hygiene

Top-tier edible oil bottling lines integrate bottom-up diving nozzles, active vacuum drip collectors, sanitary 316L piping, and automated CIP cycles to guarantee stringent product purity.

Oil handling requires specific engineering design choices to prevent splashing, foaming, and dripping during high-speed filling. A primary feature is the servo-actuated bottom-up diving nozzle system. The nozzle lowers to the bottom of the container before dispensing begins and rises synchronously with the liquid surface. This controlled ascent keeps the nozzle tip submerged just beneath the oil level, preventing air entrainment, surface bubbling, and splashing onto the bottle neck, which could otherwise compromise subsequent capping and induction sealing.

Preventing post-fill dripping is equally critical. Oil drops on container threads cause bottle contamination, cap slippage, and messy downstream packaging. Modern nozzles incorporate pneumatic cut-off valves equipped with positive suck-back action or drip-collection troughs that automatically extend beneath the nozzles between filling cycles. Any excess oil drops are immediately drawn back into the manifold or collected in a recirculation reservoir, ensuring pristine bottle surfaces throughout the packaging run.

From a sanitary engineering standpoint, all contact surfaces must be constructed from certified AISI 316L stainless steel with internal surface roughness ratings of Ra < 0.8 µm to eliminate bacterial harborage sites. Automated Clean-In-Place (CIP) systems allow hot water, caustic wash, and sanitizing flushes to circulate through the filling block without requiring mechanical disassembly. When evaluating integrated high-duty production equipment, plant operators often reference complete packaging bottling line solutions to ensure end-to-end hygienic compliance across rinsing, filling, capping, and labeling modules.

Hygienic Design Directives

1. Diving Nozzle Profile: Multi-stage speed profiles (fast fill, slow finish) minimize turbulent surface agitation.

2. Sanitary Valve Manifolds: Tri-clamp connections and zero-dead-leg valve bodies prevent oil stagnant pockets.

3. Environmental Protection: Laminar airflow HEPA enclosures above the filling zone prevent airborne dust contamination.

Hygiene Maintenance Tip: Always perform a thermal CIP flush at 85°C using an approved food-grade alkaline detergent solution after processing unrefined or high-viscosity oils to remove organic film deposits from internal fluid pathways.

Optimizing Productivity & Operational Reliability

Productivity optimization in edible oil packaging relies on continuous linear or rotary motion, rapid tool-less container changeovers, and integrated PLC-driven monitoring.

Operational efficiency is measured through Overall Equipment Effectiveness (OEE). High-speed bottling operations utilize either high-head rotary systems (capable of speeds from 6,000 to 24,000 bottles per hour) or flexible inline linear systems (ranging from 1,000 to 6,000 bottles per hour). Rotary machines provide continuous container motion with smooth acceleration curves, minimizing liquid sloshing at high line speeds. Linear fillers offer superior flexibility for facilities producing multiple SKU sizes on a single line due to their lower tooling costs and simple recipe adjustments.

Tool-less quick-changeover mechanisms are vital for minimizing planned downtime. Modern filling platforms feature motorized adjustment of conveyor guide rails, nozzle pitch spacing, and filler height controlled directly from the HMI touch screen panel. Pre-programmed product recipes automatically adjust stroke length, flow rates, diving profiles, and conveyor speed upon selecting a new SKU from the operator console, reducing line changeover time from hours to under 15 minutes.

Reliability is further enhanced by predictive health diagnostics integrated into the machine control architecture. Vibration sensors on main drives, real-time current monitoring on servo motors, and line-jam detection sensors prevent catastrophic mechanical failures. When a minor fault occurs—such as a missing container or misaligned bottle—the system performs an automatic nozzle bypass, preventing oil dispensing onto the conveyor and keeping the line running without stoppage.

Productivity Maintenance Directive: Regularly inspect servo timing belts and mechanical leadscrews every month. Ensure automatic lubrication pumps maintain clean, food-grade grease levels to eliminate mechanical wear on main drive assemblies.

Regional Standards & European Market Preferences

European buyers prioritize strict compliance with CE safety directives, high energy efficiency, integrated explosion-proof (ATEX) options, and eco-friendly lightweight container handling.

When supplying machinery to European processing facilities or global multinationals adhering to EU standards, equipment engineering must comply with stringent structural, safety, and environmental regulations. Machinery design must incorporate CE marking, fully enclosed safety interlocks with polycarbonate or toughened glass guarding, and dual-channel safety relays according to EN ISO 13849-1 standard. Operators in these markets heavily favor ergonomic design, low noise emissions (< 75 dB), and easy access for maintenance personnel.

Why Equipment is Designed This Way: Key Client Focus Areas

1. Structural Hygiene & Cleanability: European clients favor open-frame stainless steel tubular chassis designs without horizontal flat surfaces, preventing washdown water pooling and dust accumulation.

2. Sustainable Lightweight Packaging Handling: With European directives pushing for reduced plastic usage, modern oil fillers must handle extremely thin PET bottles without causing container distortion during neck clamping or capping.

3. Energy Efficiency & Smart Control: Premium IE3/IE4 high-efficiency motors, regenerative drives, and Siemens or Allen-Bradley PLC control architectures with OPC-UA Industry 4.0 data export interfaces are standard requirements.

4. ATEX / Safety Options: For facilities handling volatile solvent-extracted oils or operating in hazardous dust/gas environments, flame-proof electrical enclosures and explosion-proof motors are essential configurations.

Engineering Principle - Design Intent: Why do leading engineers favor top-mounted servo drives over bottom-mounted mechanical linkages? Top-mounted drives isolate sensitive electrical and mechanical components above the filling line, preventing oil drips or washdown liquids from penetrating drive housings, thereby quadrupling component service life.

Comparative Machinery Specification Matrix

Detailed technical specifications enable engineering teams to evaluate structural and electrical compatibility prior to equipment integration.

The matrix below outlines standard engineering parameters across three primary industrial machine classes, providing an empirical baseline for procurement specification documents.

Conclusion & Strategic Recommendations

Investing in a high-quality edible oil bottle filling machine requires balancing dosing accuracy, hygienic design, operational flexibility, and total cost of ownership.

To summarize, selecting the right oil filling system depends on understanding fluid viscosity characteristics, container requirements, and required production throughput. Implementing mass flow meter or servo-piston technology with diving anti-drip nozzles ensures fill accuracy within tight limits, drastically reducing annual product giveaway. Furthermore, adhering to sanitary 316L stainless steel standards and integrating automated CIP protocols ensures complete food safety compliance and brand protection.

When planning line expansions or upgrades, packaging engineers should prioritize tool-less changeover capabilities, robust PLC diagnostic controls, and ergonomic safety features. By aligning machine specifications with long-term production requirements and European safety standards, manufacturing facilities can achieve high operational reliability, maximized OEE, and a fast return on capital investment.
