Exploring the Diverse World of Filling Machine Technologies

Modern automated filling machine equipment utilizes specialized dosing mechanisms including gravity, piston, net weight, vacuum, and volumetric flow meter configurations to achieve accurate liquid delivery across beverage, pharmaceutical, chemical, and industrial processing operations. Selecting an appropriate filling machine system requires evaluating liquid viscosity, container geometry, target speed requirements, non-contact hygiene standards, and CIP/SIP automation capabilities to ensure long-term efficiency and minimal downtime.

Table of Contents

• Overview of classification for Filling Machines

• Key Filling Technologies

• Improvements that Current Machines Have Been or Are Being Designed to Take

• Selection of the Right Filling Machine

Overview of classification for Filling Machines

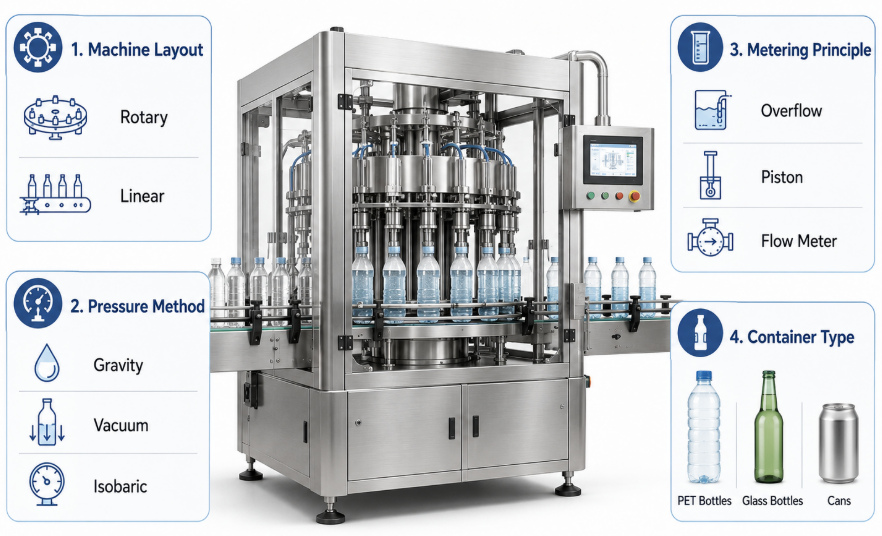

The systematic classification of modern filling machine technologies relies on primary operational parameters, including container handling dynamics, filling pressure, volumetric metering principles, and the target container style.

Industrial processing operations deploy a vast spectrum of automated liquid handling devices. Understanding how each filling machine operates within dedicated production environments requires categorizing these systems by their physical dosing principles. The most fundamental division in filling machine design separates continuous rotary systems from inline linear indexing systems. Rotary filling machine configurations are engineered for high-throughput automated lines, where continuous container motion allows precise filling at speeds exceeding hundreds of containers per minute. Conversely, linear filling machine setups offer modular flexibility, lower initial capital investment, and faster format changeovers, making them well-suited for medium-to-low batch manufacturing environments.

Furthermore, atmospheric and pressure dynamics dictate how a filling machine manages liquid transfer into rigid or semi-rigid containers. Atmospheric gravity filling machine units rely on static head pressure, making them optimal for free-flowing liquids with stable viscosities. Vacuum-assisted filling machine models establish a pressure differential inside the container, which prevents leakage in non-rigid bottles and assists in liquid level levelling. Isobaric or counter-pressure filling machine systems pressurize the container with inert gas prior to liquid dispensing, preserving dissolved carbonation levels during carbonated beverage bottling. Positive displacement filling machine platforms, incorporating servo-driven pistons or rotary lobe pumps, directly handle high-viscosity pastes, gels, and suspended solids that cannot flow under gravity alone.

From an engineering perspective, modern filling machine integration hinges on matching mechanical movement with fluid dynamics. Machine frame construction typically utilizes heavy-duty stainless steel alloys to withstand continuous operational vibration and aggressive washdown chemical protocols. The container conveying line must synchronize seamlessly with the filling machine starwheels or timing screws to eliminate bottle tipping, liquid spillage, and neck stress. Understanding these foundational classifications enables packaging engineers to establish baseline equipment specifications tailored directly to specific product chemistry and factory throughput demands.

Work Principle & Fluid Control Dynamics: The operational physics of an atmospheric gravity filling machine relies on establishing a stable pressure differential between the main product holding tank and the atmosphere. Liquid flows down the filling valve stem under force of gravity once the container seals against the valve gasket. As the liquid reaches the fill port opening, displaced air inside the container escapes through an internal vent tube. The liquid flow naturally stops when the liquid level covers the vent port, establishing a highly consistent liquid fill height across varying glass container internal volumes.

Key Filling Technologies

Key filling machine technologies utilize specialized mechanical, hydraulic, pneumatic, and electronic dosing mechanisms engineered to accommodate unique liquid viscosities, container materials, and carbonation levels.

Analyzing individual liquid delivery mechanisms reveals why specific filling machine configurations dominate distinct market sectors. Gravity overflow filling machine systems remain a cornerstone of cosmetic and spirit bottling due to their ability to achieve a uniform fill line visual height regardless of minor internal glass bottle volume variances. In these systems, liquid enters the bottle under low atmospheric pressure until it covers an internal return port. Excess product then recirculates back to a central feed reservoir. This ensures that every finished bottle on a retail shelf presents an identical visual liquid line, which is crucial for consumer quality perception.

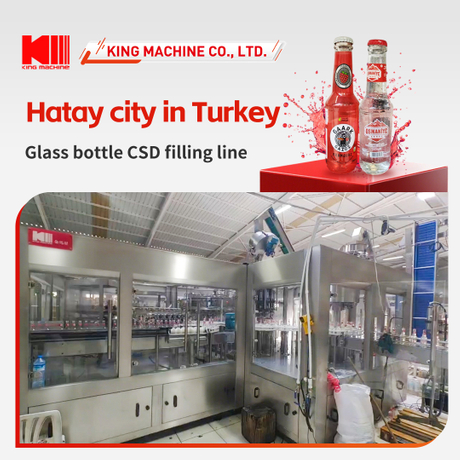

For carbonated liquids, isobaric counter-pressure filling machine technology is indispensable. Carbonated beverages require strict pressure equalization between the product bowl and the target container prior to opening the liquid valve. By pressurizing the container with carbon dioxide or nitrogen gas to match the liquid tank pressure, the filling machine eliminates turbulent foaming and prevents premature gas degassing during liquid transfer. Once the target volume is reached, the valve closes, and a slow snifting process gently vents residual headspace pressure before the container unseals, ensuring foam stability and precise net contents.

When processing heavy pastes, lotions, or liquids containing particulate matter, the positive displacement piston filling machine provides unmatched volumetric accuracy. These units draw a measured volume of product into a precision-machined cylinder during the intake stroke and discharge it directly into the container during the stroke cycle. Furthermore, advanced processing lines increasingly integrate high-precision automated liquid handling solutions, such as high-performance beverage filling equipment, to maintain non-contact hygienic volumetric dosing across high-speed packaging lines.

To further understand technology applications across diverse industrial sectors, consider these specific performance attributes:

1. Viscosity Adaptability Mechanics: Standard gravity filling machine systems perform flawlessly with water-like liquids under 100 cP. However, as fluid resistance increases into thick pastes, a piston or rotary lobe filling machine becomes necessary to overcome shear resistance and pipe friction without degrading product structure.

2. Gas Handling and Dissolved Oxygen Preservation: Advanced isobaric filling machine setups minimize dissolved oxygen pick-up during liquid transfer. Pre-evacuation vacuum cycles remove ambient air from the bottle before backfilling with inert carbon dioxide gas, extending product shelf life for premium beverages.

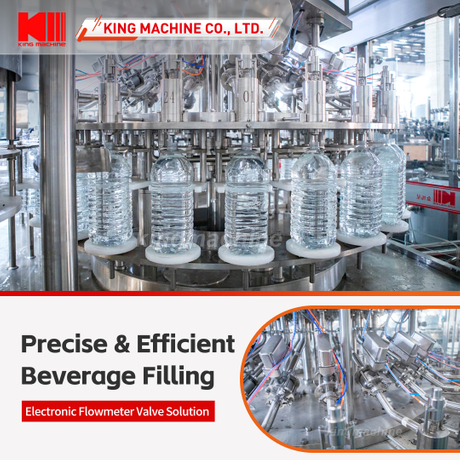

3. Volumetric Precision and Non-Contact Dosing: Flow meter filling machine architectures eliminate mechanical moving parts within the product contact zone. Electromagnetic or Coriolis flow sensors continuously stream mass flow data to a central PLC, terminating liquid flow via ultra-fast pneumatic actuator valves once exact target weights are reached.

Maintenance Guidelines & Preventative Procedures: Maintaining high volumetric accuracy on a piston filling machine requires routine inspection of dynamic elastomeric seal rings. Over time, friction against the cylinder wall causes seal degradation, leading to product bypass and fill volume variance. Operators must execute daily inspection of piston O-rings, apply food-grade lubricants during reassembly, and perform bi-weekly calibration verifications using calibrated laboratory balances to maintain operating tolerances within ±0.25%.

Improvements that Current Machines Have Been or Are Being Designed to Take

Current filling machine designs focus heavily on hygienic non-contact valve architecture, full Clean-in-Place (CIP) and Sterilize-in-Place (SIP) automation, servo-driven kinematic control, and digital Industry 4.0 IoT predictive diagnostics.

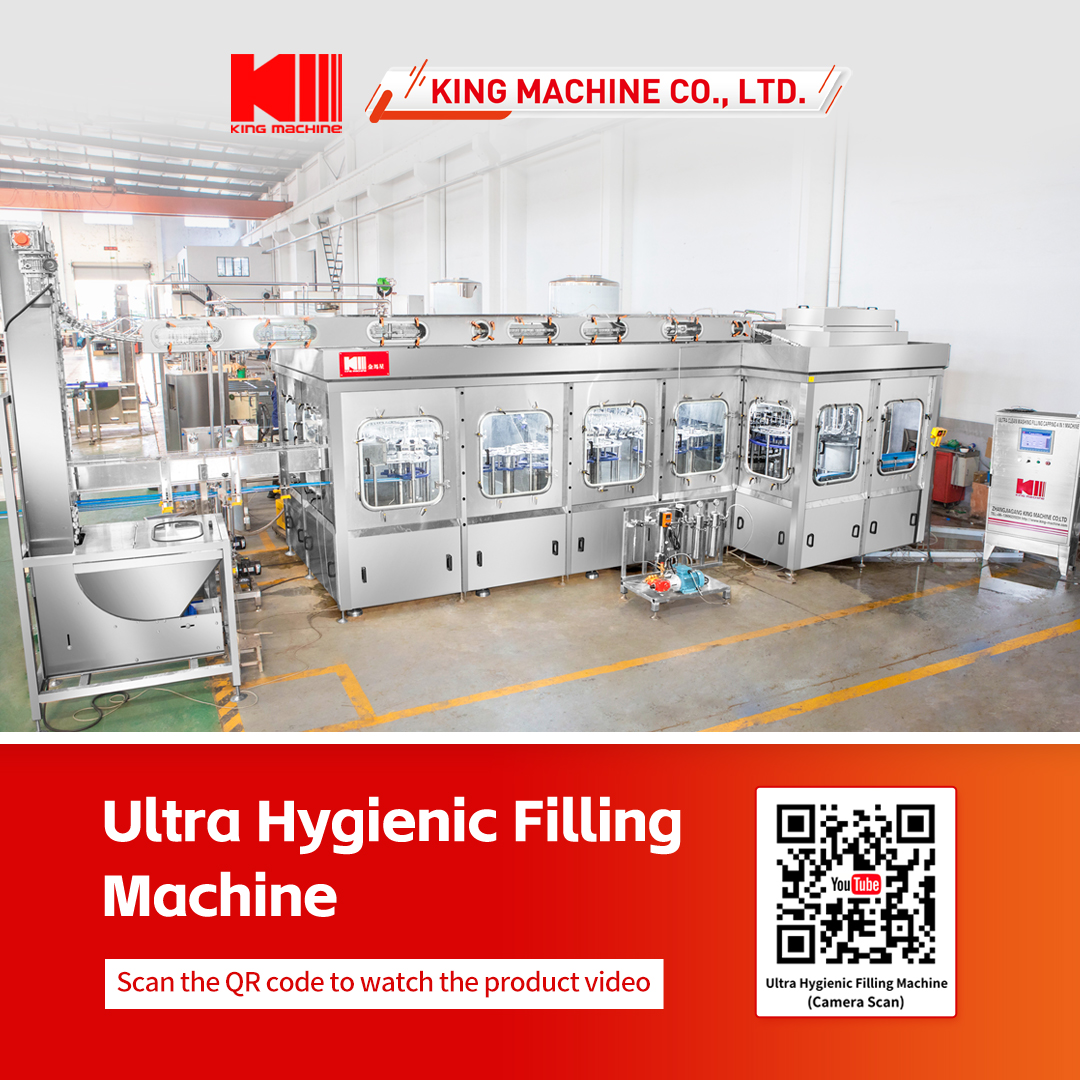

The operational landscape for automated filling machine systems is undergoing rapid technological advancement. Modern industrial requirements prioritize food safety, rapid format adaptability, and reduced maintenance overhead. One primary engineering improvement in modern filling machine systems is the shift toward non-contact liquid valve design. Traditional filling valve nozzles relied on physical contact between the valve bottom and the container finish to initiate product flow. Contemporary ultra-clean filling machine designs utilize non-contact liquid jetting and flow meter controls, ensuring no component touches the bottle neck. This entirely eliminates cross-contamination risks and bottle neck fracture hazards during high-speed bottling operation.

Clean-in-Place (CIP) and Sterilize-in-Place (SIP) automation represents another major leap in filling machine evolution. Older generation filling machine units required manual teardown of liquid pathways, valve blocks, and manifolds for daily sanitization. Modern filling machine architectures integrate automated CIP cup positioning systems. Under PLC control, pneumatic actuators automatically position sanitization collector cups beneath every filling nozzle, creating a sealed closed-loop circuit. Sanitize fluid, alkaline washes, and superheated steam (up to 135°C) cycle through the internal piping automatically, cutting manual labor hours by over 80% while ensuring fully traceable microbiological safety compliance.

Furthermore, mechanical cam tracks and pneumatic linkages are increasingly replaced by multi-axis servo drives. In a modern servo-driven filling machine, nozzle immersion profile, liquid valve opening speeds, and container indexing are independently programmable via a central touchscreen HMI. When switching bottle height or volume, operators simply select a pre-saved recipe on the HMI. The filling machine automatically adjusts internal bottom-up fill profiles to match fluid foaming characteristics, drastically reducing product splash and changeover downtime. These advanced features are widely integrated into state-of-the-art automated bottling line solutions designed for multi-product contract packaging facilities.

Modern functional upgrades in current industrial filling machine platforms include:

1. Servo Motorized Bottom-Up Filling: To manage liquids prone to surface tension aeration or foaming, the filling machine nozzle lowers into the container base prior to dosing. The nozzle then rises in direct synchronization with the rising liquid surface level, keeping the nozzle tip immersed just below the fluid boundary to eliminate air entrapment.

2. Hygienic Cabinet Enclosure Isolation: Advanced aseptic filling machine systems operate inside HEPA-filtered laminar flow cleanrooms or isolated positive-pressure cabinets. Integrated hydrogen peroxide vapor (VHP) sterilization modules continually decontaminate the internal housing environment during high-speed production runs.

3. Smart Sensor Predictive Diagnostics: IoT sensor arrays embedded in filling machine main drives monitor bearing temperature, vibration frequencies, and air pressure drops in real time. Algorithmic edge processing predicts mechanical wear on valve seals and main drives before catastrophic failure occurs, shifting maintenance from reactive to predictive paradigms.

Design Insights & Market Preferences: Why are modern filling machine platforms constructed with sloping top surfaces and frameless cleanroom enclosures? Operational feedback from European food and beverage producers highlights that flat horizontal surfaces trap standing water and chemical residues after high-pressure washdowns, promoting bacterial biofilm growth. Modern filling machine frames feature self-draining 304/316L stainless steel surfaces with IP69K rated electrical enclosures, satisfying strict hygienic processing guidelines globally.

Selection of the Right Filling Machine

Selecting the correct filling machine requires a thorough evaluation of fluid viscosity, target production line speeds, container structural properties, changeover frequency, and total cost of ownership over the equipment life cycle.

Investing in a commercial filling machine requires balancing immediate production targets with long-term operational flexibility. The primary engineering metric when specifying a filling machine is fluid behavior under ambient and processing temperatures. Non-Newtonian fluids, such as thixotropic paints or shear-thinning sauces, exhibit changing viscosity profiles when subjected to shear forces inside feed lines. Packaging engineers must evaluate whether a gravity filling machine provides sufficient flow rate, or if a positive displacement piston or peristaltic filling machine is necessary to force product through the dosing manifold without altering liquid structural properties.

Secondary selection criteria involve container dimensions, neck finish geometries, and physical material limits. Lightweight PET plastic bottles require delicate handling in a high-speed rotary filling machine to prevent side-wall buckling during valve contact. Glass bottles withstand high vertical neck forces, making them suitable for heavy mechanical valve pressure, but they introduce potential glass fragmentation risks that require automated flush systems. Evaluating these container dynamics ensures the chosen filling machine incorporates appropriate container handling mechanisms, such as neck-handling grippers or supportive bottom-up pedestals.

Furthermore, total cost of ownership (TCO) calculations must look beyond initial capital expenditure. Operational expenditures, including electrical consumption, compressed air demand, washdown water usage, and replacement seal kits, significantly impact long-term profitability. Implementing versatile liquid filling machine technology designed with quick-release tool-less components reduces recipe changeover times from hours to minutes, maximizing overall equipment effectiveness (OEE) in high-mix, flexible production facilities.

When systematically selecting an industrial filling machine for a new processing facility, engineers should apply the following structured protocol:

1. Fluid Characterization and Rheology Mapping: Conduct comprehensive lab testing to measure product density, viscosity curves across processing temperatures, surface tension, and particle size distribution. Match these data points against candidate filling machine valve orifice dimensions to prevent clogging or fluid shear degradation.

2. Throughput and Line Balancing Analysis: Calculate required container-per-minute (CPM) speeds based on annual output targets and shift structures. Ensure the selected filling machine rated capacity exceeds upstream blowing and downstream capping capacity by 10-15% to maintain balanced line kinetics without starving downstream equipment.

3. Flexibility and Changeover Evaluation: Assess the mechanical steps needed to switch between different bottle sizes and liquid recipes. A modern filling machine equipped with digital servo adjustments and color-coded quick-change starwheels minimizes downtime, making short production runs economically viable.

In conclusion, selecting an optimal filling machine relies on aligning mechanical metering principles with fluid rheology and packaging container constraints. Whether deploying a robust gravity filling machine for clear beverages, a precision piston filling machine for dense viscous pastes, or a sophisticated flow meter filling machine for flexible high-purity processing, thoroughly analyzing operational variables guarantees maximal production efficiency, regulatory hygiene compliance, and dependable long-term performance.
