How Does A Beverage Filling Machine Work?

A beverage filling machine operates through an automated, highly synchronized sequence where empty containers are sanitized, transferred via precision conveyor systems, filled with targeted liquid volumes using pressure, gravity, isobaric, or peristaltic dosing mechanisms, and immediately capped under strict hygienic conditions to ensure shelf stability, volume accuracy, and high-speed operational efficiency.

Table of Contents

• What is a Beverage Filling Machine?

• Working Principle of Beverage Filling Machines

• Peristaltic Filling Pump Systems

What is a Beverage Filling Machine?

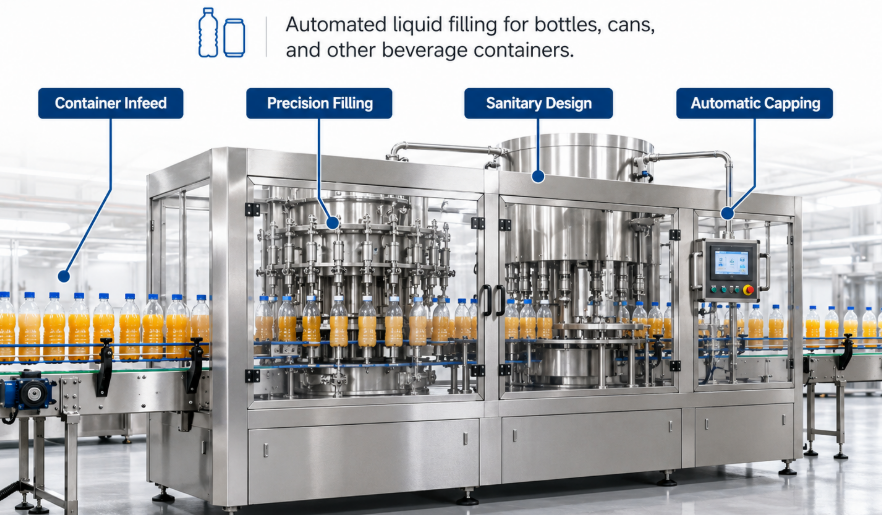

A beverage filling machine is an automated industrial system designed to measure, dispense, and seal liquid products into containers such as glass bottles, PET containers, aluminum cans, or pouches at high precision and operational throughput.

The operational framework of a beverage filling machine relies on a complex integration of mechanical, pneumatic, electrical, and fluid-dynamic engineering components. In modern high-capacity production lines, a beverage filling machine functions as part of a monobloc or tribloc configuration where container rinsing, liquid filling, and capping occur within a single enclosed sanitary housing. These systems accommodate diverse liquid media, ranging from low-viscosity non-carbonated water and purified beverages to highly viscous liquids with suspended pulp, as well as carbonated liquids requiring counter-pressure handling. Container feeding is synchronized using starwheels, timing screws, and linear or rotary turrets that ensure exact positioning under individual filling nozzles without mechanical deformation or liquid spillage.

Engineering considerations for a high-efficiency beverage filling machine prioritize hygienic design, structural rigidity, and flexible container changeover capabilities. Components in contact with the product, such as liquid storage reservoirs, filling valves, dosing cylinders, and delivery piping, are manufactured using high-grade stainless steel like AISI 316L. Seals and gaskets utilize food-grade elastomeric materials such as EPDM, PTFE, or Viton to withstand thermal stress and chemical exposure during Clean-In-Place (CIP) and Sterilization-In-Place (SIP) cycles. The structural framework incorporates IP65 or IP67 waterproof enclosures, sloped drainage surfaces, and frameless sanitary designs to prevent bio-film accumulation and cross-contamination during continuous multi-shift production runs.

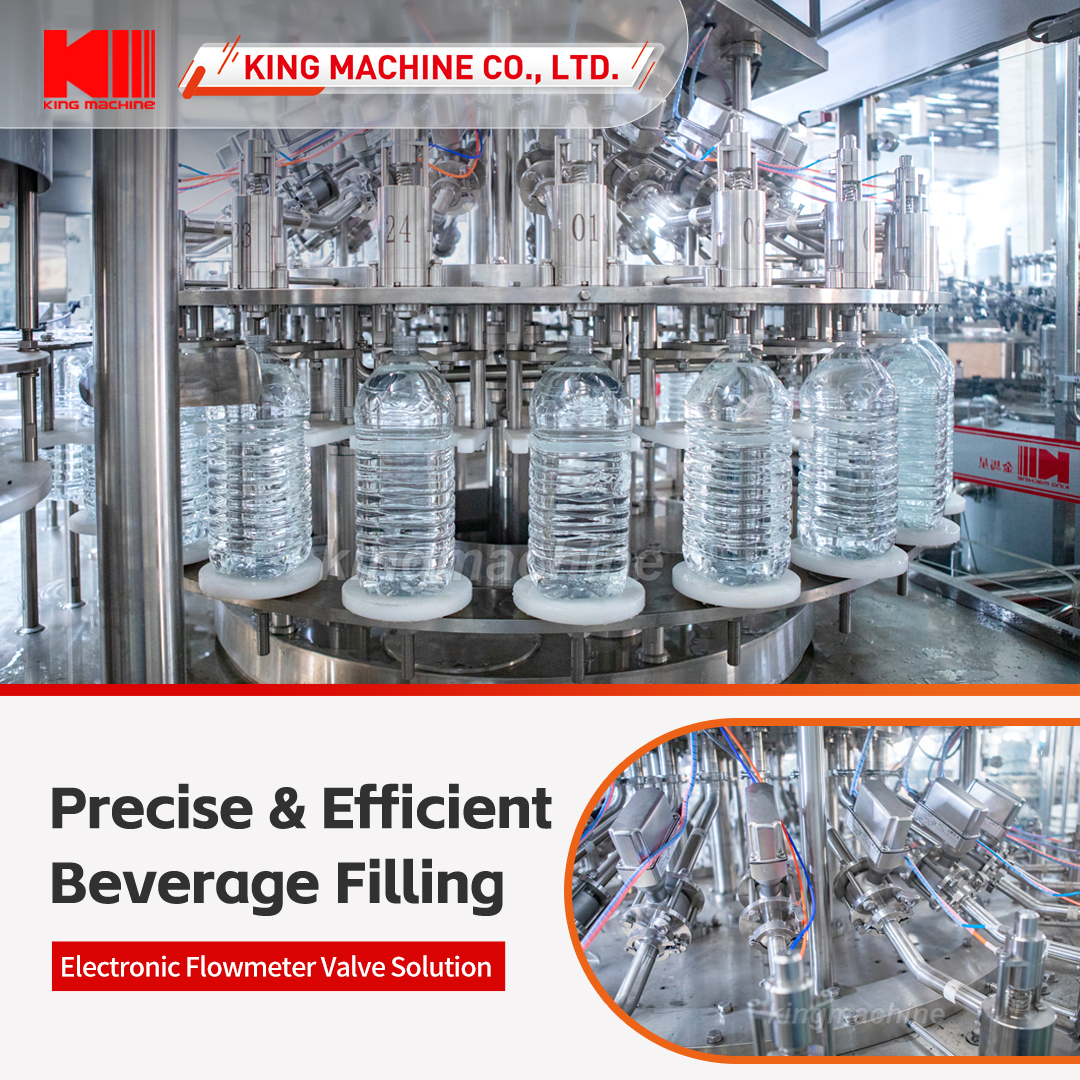

From an operational standpoint, industrial client evaluations frequently focus on liquid flow control accuracy, reduction of oxygen pickup, and energy efficiency. European and international beverage producers consistently favor filling platforms equipped with electromagnetic magnetic inductive flowmeters or mass flowmeters (coriolis system) over mechanical float systems. This preference is driven by the demand for non-contact volumetric filling, which eliminates mechanical wear, minimizes maintenance downtime, and allows rapid digital recipe adjustments via Programmable Logic Controller (PLC) human-machine interfaces. Advanced systems integrate real-time fill level monitoring, automated defective container rejection, and high-efficiency vacuum deaeration systems to maintain exact fill levels while extending product shelf life.

Maintenance Precautions and Operational Hygiene: Regular inspection of fill valve seals, diaphragm membranes, and pneumatic O-rings is critical to preventing micro-leakage and fill volume degradation. Sanitary CIP cycles must be executed at recommended chemical concentrations (1.5% to 2.0% caustic soda at 80°C) followed by thorough hot-water rinsing. Lubrication of mechanical starwheel drives and indexing gears must utilize food-grade NSF H1 lubricants exclusively to prevent contamination risks.

Working Principle of Beverage Filling Machines

The working principle of a beverage filling machine relies on controlled pressure differential, mechanical or electronic valve actuation, and volumetric or gravity liquid transfer mechanisms to achieve consistent filling levels across containers.

To understand the working mechanics of a beverage filling machine, the process must be segmented into distinct liquid transfer methodologies. Gravity filling systems utilize atmospheric pressure where the liquid bowl is positioned above the containers. When the filling valve opens upon container contact, hydrostatic head pressure causes the beverage to flow downward into the bottle until the liquid level covers the vent pipe, stopping the flow. Pressure filling, or counter-pressure (isobaric) filling, is employed for carbonated beverages such as beer, carbonated soft drinks, and sparkling cider. In an isobaric beverage filling machine, the container is first pressurized with carbon dioxide or nitrogen gas to match the pressure inside the product bowl, preventing rapid degassing and excessive foaming during liquid entry. Once equal pressure is established, the spring-loaded or pneumatically actuated liquid valve opens, allowing smooth gravity-assisted liquid flow while gas escapes through a equalization channel.

Hot filling represents another specialized thermal and mechanical working principle widely applied to acidic juices, teas, and functional sports drinks. In hot filling, the product is thermal processed and delivered to the beverage filling machine at temperatures between 85°C and 92°C. The machine continuously recirculates the hot liquid through the valve header when containers are absent, ensuring that liquid contact zones maintain required sterilization temperatures. When a bottle enters the filling position, the valve opens and fills the container while steam or sterile air flushing prevents external air ingress. Immediately after filling, the container is sealed and tilted or inverted to sterilize the interior surfaces of the cap using residual product heat, after which it enters a cooling tunnel to reduce thermal strain on PET container structures.

Modern engineering design choices reflect strict functional priorities observed across global beverage manufacturing markets. Equipment designers incorporate pneumatic cylinder-driven valve actuators and servo-driven lifting pedestals to eliminate mechanical shock during container elevation. Clients consistently prioritize liquid recovery systems, precise flow rate profiling, and electronic level sensing over older mechanical probe systems. High-end configurations feature dual-speed filling profiles—fast initial flow to maximize throughput, followed by a slow secondary deceleration phase to prevent splash-back and foam formation. Advanced systems incorporate beverage filling machines equipped with sterile air filtration (HEPA H14) units above the rotary filler carousel, maintaining a positive pressure laminar flow zone that protects open liquid streams from airborne particulates.

1. Container Infeed and Indexing Mechanics

Containers enter the beverage filling machine via air conveyors or modular slat chains. An infeed timing screw separates the containers into uniform intervals matching the pitch of the rotary carousel. Starwheels equipped with pocket cutouts transfer the containers onto mechanical or pneumatic lifting pedestals aligned directly beneath the filling valves.

2. Sealing, Pressurization, and Liquid Dispensing

In counter-pressure and gravity systems, the container neck is clamped against a sanitary rubber gasket beneath the valve nozzle. For carbonated products, CO2 valve actuations pressurize the bottle interior to equalize tank pressure before the liquid seal lifts. Liquid flows into the container along the internal container walls via a spreader cone, minimizing turbulence and air entrapment.

3. Snifting, Gas Release, and Container Outfeed

Upon reaching the predetermined fill level or volume limit, the liquid valve snaps shut. In carbonated systems, a controlled pressure relief process called snifting opens a small purge port to safely vent headspace gas before the bottle drops away from the sealing rubber. The filled container is transferred via center starwheels directly to the capping station.

Working Principle Optimization Tips: To prevent excessive foaming during isobaric filling, maintain product beverage temperatures strictly between 2°C and 4°C, as carbon dioxide solubility decreases rapidly at elevated temperatures. Ensure snifting valves operate with smooth proportional venting to avoid sudden pressure drops that trigger product boil-over. Verify that neck-clamping grippers maintain uniform tension to eliminate container slippage during high-speed indexing.

Peristaltic Filling Pump Systems

Peristaltic filling pump systems utilize positive displacement flexible tubing rollers to isolate liquid product within sterile fluid pathways, delivering precise volumetric dosing for specialized high-purity beverage production.

Peristaltic pumping technology represents a specialized subset of liquid dosing mechanics integrated into high-precision beverage filling systems. Unlike traditional piston pumps or rotary lobe pumps, a peristaltic beverage filling machine confines the liquid media entirely within a continuous piece of flexible elastomer tubing. As the pump rotor rotates, spaced rollers or shoes compress the tubing against a semi-circular housing track. This squeezing motion creates a positive displacement seal, trapping a defined volume of liquid and propelling it forward through the discharge nozzle. Behind each compression point, the elastic recovery of the compressed tube creates a continuous vacuum that draws liquid from the supply vessel, ensuring smooth, non-turbulent liquid delivery.

The primary engineering advantage of peristaltic dosing within a beverage filling machine lies in the total elimination of cross-contamination risks and mechanical seal degradation. Because no internal gears, valves, bladders, or metal components come into direct contact with the product, the risk of fluid contamination, particle shedding, or bacterial harbor sites is virtually zero. When switching between different beverage formulations, flavors, or organic concentrates, operators can replace the entire fluid path by exchanging the disposable or autoclavable tubing set. This capability drastically reduces CIP validation time, chemical water rinse consumption, and downtime associated with mechanical valve disassembly in multi-flavor beverage processing plants.

From an industry adoption perspective, European and Asian beverage manufacturers frequently implement peristaltic pump filling lines for high-value liquid products, low-volume specialty shots, botanical extracts, and micro-dose flavoring additions. Equipment designers optimize these systems by pairing peristaltic pump heads with high-resolution stepper motors or AC servo drives capable of dividing a single pump rotation into thousands of discrete steps. This setup provides exceptional volumetric accuracy (often exceeding ±0.1%), low-shear fluid handling that preserves liquid viscosity, and zero back-drip when paired with automated suction-back motor control software. Installing versatile beverage filling machinery solutions incorporating peristaltic dosing modules allows producers to run sensitive liquids without thermal or shear stress.

1. Absolute Isolation and Sanitary Fluid Integrity

Peristaltic pumping systems guarantee that the beverage remains encapsulated within sterile tubing from the storage vat to the final container dispensing nozzle. This complete physical separation protects sensitive formulations from grease, particulate contamination, and mechanical seal degradation common in mechanical gear or piston pumps.

2. High-Precision Dosing and Anti-Drip Control

By controlling rotor rotation through electronic servo positioning, peristaltic pumps deliver exceptional volumetric dosing accuracy across variable viscosity ranges. At the end of a filling cycle, the pump motor momentarily reverses direction (programmable suction-back function), pulling back excess liquid from the nozzle tip to prevent liquid droplets from contaminating container neck threads or conveyor Belts.

3. Reduced Maintenance and Rapid Changeover

Maintenance of peristaltic pump systems is simplified due to the absence of internal dynamic seals, check valves, or internal O-rings. Preventive maintenance involves periodic inspection and replacement of the flexible tube element based on calculated mechanical flex life hours. Line operators can perform fluid path replacements in minutes without specialized mechanical tooling.

Peristaltic System Maintenance Tips: Routinely monitor tubing elasticity and wall wear to avoid gradual volume drift caused by mechanical tube degradation. Select platinum-cured silicone or specialized thermoplastic tubing rated specifically for high-flex cyclic endurance in continuous liquid production. Ensure that tube positioning clamps maintain uniform alignment without pinching to prevent flow restriction or premature tube rupture.

Comprehensive Technical Analysis of Beverage Filling Machine Architecture

Understanding how a modern beverage filling machine operates requires evaluating the complete ecosystem of interconnected subsystems that form high-speed packaging lines. Beyond basic liquid dosing, modern production demands seamless coordination between mechanical bottle transport, pneumatic capping turrets, electronic flow sensing, and automated quality control feedback loops. The structural frame of the beverage filling machine serves as the foundation for these sub-assemblies, engineered using heavy-duty stainless steel tubular framing with integrated sloped guttering to collect washdown fluids and spilled liquid, directing them to centralized drain outlets.

Container transport dynamics within a beverage filling machine rely on precise neck-handling or base-handling configurations. For PET plastic containers, neck-clamping technology has become the global industry standard. Neck-handling starwheels support bottles by their neck rings throughout rinsing, filling, and capping operations. This design offers a significant operational advantage: line operators can change bottle volume capacities (e.g., from 500ml to 1.5L) without replacing elevation height components or base guide plates, provided the neck finish remains identical. This neck-suspension design minimizes downtime during container size changes, reduces mechanical crush risks on thin-walled lightweight PET containers, and ensures consistent nozzle-to-neck alignment across variable line speeds.

Liquid feeding manifolds and main distribution bowls represent another critical engineering domain within a beverage filling machine. Beverage product enters the central distribution bowl through a rotary manifold joint mounted at the top of the carousel. Level sensors inside the tank maintain constant liquid head height using proportional inlet control valves or frequency-controlled feed pumps. Maintaining a stable liquid level is essential for gravity and isobaric systems, as fluctuations in liquid depth directly affect hydrostatic pressure and flow velocity through the filling valves. Advanced beverage filling systems incorporate continuous nitrogen blanketing inside the main bowl, replacing atmospheric air with inert gas to prevent product oxidation during long manufacturing shifts.

The capping mechanism represents the final vital phase in a tri-bloc beverage filling machine setup. Capping turrets are mechanically synchronized with the filling carousel via direct gear drive trains or electronically synchronized servo drives. For plastic screw caps, magnetic hysteresis capping heads are universally preferred. These heads apply precise magnetic torque to tighten caps without scuffing the plastic finish or stripping thread ridges. If cap resistance exceeds the preset magnetic coupling limit, the head slips safely, ensuring every container receives an identical, airtight seal. Integrating inspection vision sensors after the capping turret immediately verifies cap placement height, tilt angle, and tamper-evident ring integrity, automatically rejecting defective bottles downstream.

Investing in advanced beverage filling machine options engineered with integrated CIP wash cups, automatic central lubrication manifolds, and real-time remote diagnostics enables beverage plants to achieve overall equipment effectiveness (OEE) ratings exceeding 95%. By selecting the correct filling valve technology—whether gravity, isobaric, hot-fill, or peristaltic—beverage producers ensure long-term operational reliability, precise volumetric control, and uncompromising product quality across global distribution networks.
