How a Juice Filling Machine Works - Step-by-Step Process Explained

A juice filling machine operates through a synchronized, multi-stage automated workflow comprising container feeding, thermal or chemical sterilization, precision volumetric dosing, atmospheric or hot-fill capping, and integrated container cooling. Modern industrial packaging architectures leverage high-precision rotary filling valves, continuous electromagnetic flowmeters, and Programmable Logic Controller (PLC) synchronization to maintain strict liquid temperature control, minimize dissolved oxygen pickup, eliminate microbiological contamination risks, and achieve continuous production speeds exceeding 24,000 bottles per hour.

Table of Contents

• Core Components and Their Functional Roles

• Sequential Operation Through the Processing Stations

• Control Systems and Automation Intelligence

• Maintenance Requirements and Performance Optimization

Core Components and Their Functional Roles

A high-performance juice filling machine relies on a tightly integrated series of specialized mechanical, pneumatic, and electronic sub-assemblies designed to handle liquid viscosities ranging from clear pulpless apple juice to high-pulp orange and tropical nectar formulations. As engineering specialists in liquid packaging automation, we design these core sub-assemblies to withstand demanding thermal environments, continuous CIP sanitation cycles, and abrasive washdown routines.

Bottle Feeding and Orientation System

The bottle feeding and orientation assembly transfers raw PET preforms or pre-molded bottles into the main starwheel transfer system using high-velocity air conveyors equipped with HEPA filtration. In modern high-efficiency operations, integrating an advanced Orange Juice Blowing Filling Capping Machine eliminates manual container loading by directly combining container blowing and bottle transfer into a single synchronized sterile loop.

Rinsing and Sterilization Module

The rinsing turret utilizes stainless steel neck-clamping grippers that invert bottles 180 degrees over specialized spray nozzles. Depending on juice acidity, pasteurization standards, and hot-fill demands, these nozzles deliver sterile air, ozonated water, or hydrogen peroxide mist, ensuring container interior sterility before liquid ingress.

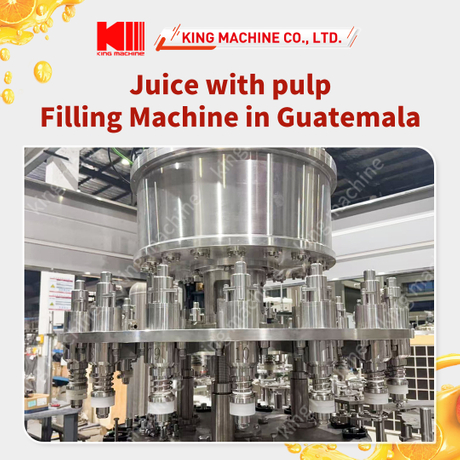

Filling Valves and Volume Control Mechanisms

The heart of the juice filling machine consists of electronic magnetic flowmeter valves or mechanical gravity-fill internal return-air tubes. Electromagnetic flowmeters enable non-contact liquid dosing with volumetric accuracy exceeding 99.85 percent, preventing valve contact with container rims and eliminating cross-contamination risk.

The structural architecture of these internal modules must balance strict hygienic engineering standards with heavy mechanical endurance. The table below outlines the core mechanical specifications typically integrated into industrial liquid packaging platforms:

When evaluating customer purchasing decisions across global markets, industrial clients prioritize volumetric accuracy and CIP cleanability above all else. In European processing facilities, standard specifications mandate 316L contact surfaces, Ra < 0.4 μm surface roughness, and completely automated CIP return cups. We design our fluid contact loops with sloped drainage pathways and zero dead-leg geometry specifically to fulfill these stringent sterile requirements.

Sterilizing Tip: Regular inspection of food-grade EPDM and Viton valve gaskets every 500 operating hours prevents micro-fissure accumulation and prevents liquid micro-leakage during high-pressure thermal CIP cycles.

Sequential Operation Through the Processing Stations

The continuous operation of a high-speed juice filling machine follows a synchronized rotational sequence where containers progress through rinsing, thermal dosing, capping, and neck cooling under rigid sanitary containment. Each processing station operates under pitch-matched starwheel transfers, eliminating mechanical shock and preventing liquid spilling at line speeds up to 36,000 bottles per hour.

Conveyor Timing and Synchronization Logic

Container movement relies on servo-driven pitch alignment where positive-engagement neck clamps pass bottles seamlessly between starwheels without altering bottle height or axis. Electronic gear-boxing coordinates speed adjustments between blowing, rinsing, and filling stations during ramp-up and ramp-down phases.

Hot Filling Process Dynamics

During hot filling, juice enters containers at pasteurization temperatures between 85°C and 92°C to ensure natural thermal sterilization of the container interior. A constant recirculation loop maintains liquid temperature inside the main reservoir bowl, returning under-temperature juice back to the flash pasteurizer automatically.

Capping Station Operation and Torque Application

The rotary capping station applies plastic screw closures or aluminum caps using magnetic hysteresis capping heads that deliver precise top-load pressure and application torque. For complete line integration, adopting an automated Integrated Blowing-Filling-Capping Block guarantees that freshly filled hot containers move directly to capping within milliseconds, preserving container head-space sterility.

Understanding the thermal and kinetic shifts within the filling zone is vital for operational efficiency. The processing sequence can be categorized into four defined operating phases:

1. Infeed & Thermal Pre-conditioning: Containers undergo air rinsing while undergoing structural stabilization to receive thermal shock from liquid entry.

2. Volumetric Dosing & Recirculation: High-speed filling valves open concurrently, measuring mass or liquid volume while continuous thermal sensors verify juice remains above 85°C.

3. Headspace Nitrogen Injection or Steam Injection: Inert gas or saturated steam displaces residual oxygen from the headspace to prevent vitamin oxidation and color degradation.

4. Hermetic Capping & Container Inversion: Magnetic cappers apply sealing caps under controlled torque, followed by a 180-degree bottle tilting phase to let hot juice sterilize the interior cap surface.

Why do modern engineering standards favor rotary bottle neck-hanging over bottom-belt conveying? In high-speed production lines handling lightweight PET containers, base-supported transport causes panel collapse under thermal strain. By suspending PET bottles from their rigid neck rings throughout rinsing, filling, and capping, structural integrity remains uncompromised regardless of wall thickness variations.

Control Systems and Automation Intelligence

Modern juice filling machine platforms integrate advanced industrial automation architectures to coordinate mechanical motion, fluid management, safety protocols, and quality monitoring. The central nervous system of the machine consists of a high-performance Programmable Logic Controller (PLC) connected via industrial Ethernet protocols (such as PROFINET or EtherCAT) to high-speed servo drives, flowmeters, pneumatic manifolds, and safety modules.

Human-Machine Interface and Recipe Management

The Human-Machine Interface (HMI) features an intuitive graphical touchscreen allowing operators to select pre-configured product recipes detailing fill volume, target pasteurization temperature, line speed, and capping torque. Multi-level user access controls restrict system tuning to authorized automation engineers, maintaining operational compliance.

Quality Monitoring and Data Logging Functions

Continuous vision systems and inline sensors monitor container fill level, cap tilt, seal integrity, and liquid temperature at full production speeds. Non-compliant containers trigger high-speed pneumatic reject pushers that remove defective units without interrupting main line flow.

Safety Systems and Emergency Protocols

Interlocked safety doors featuring codable magnetic switches immediately stop machine movement if access panels open during operation. Emergency stop circuits instantly dump pneumatic pressure, isolate steam lines, and isolate high-temperature fluid loops to safeguard operational personnel.

Industrial automation standards require structured data tracking across every processing shift. Below is an overview of the monitoring metrics tracked by the PLC architecture:

From an operational engineering perspective, European and North American beverage manufacturers increasingly demand total telemetry integration with enterprise ERP systems. Industrial customers focus on minimizing batch changeover times and eliminating product loss during recipe swaps. Integrating recipe-driven automated fill-height adjustment and self-draining manifold manifolds permits rapid product shifts from pulp-loaded orange juice to clear isotonic drinks in under 15 minutes.

Maintenance Requirements and Performance Optimization

Maintaining peak performance, high efficiency, and continuous sterility across the lifecycle of a juice filling machine requires structured preventative maintenance routines and strict sanitation compliance. Neglecting preventative service leads to liquid volume drift, seal degradation, elevated scrap rates, and potential microbiological contamination risks that can disrupt whole production lots.

Implementing an effective maintenance schedule ensures operational longevity and minimizes unplanned machine downtime. The following structured protocols outline essential service intervals:

1. Daily Operational Inspections (Shift Startup & Shutdown):

   • Perform full Clean-In-Place (CIP) and Sterilize-In-Place (SIP) thermal sanitation sequences (85°C hot water or steam rinse).

   • Verify air conveyor HEPA filter differential pressure to ensure zero air-borne particulate contamination.

   • Inspect neck-gripping starwheels and bottle guide plates for physical wear or debris accumulation.

2. Weekly Mechanical & Pneumatic Maintenance:

   • Check pneumatic regulator pressure values and clear moisture traps on main air supply lines.

   • Lubricate central rotary turret bearings and main drive gearboxes using food-grade lubricants (NSF H1 compliant).

   • Check capping head magnetic hysteresis clutches for consistent torque release.

3. Monthly Precision Calibration & Seal Maintenance:

   • Calibrate electromagnetic flowmeters and mass flow sensors against physical weight scale measurements.

   • Inspect internal rubber gaskets, PTFE diaphragms, and seal rings within all filling valve assemblies.

   • Test safety interlock sensors, emergency stop buttons, and high-speed rejection gates for instant response.

4. Annual Overhaul & Component Replacement:

   • Replace all liquid contact O-rings, dynamic shaft seals, and CIP cup gaskets.

   • Conduct complete thermal imaging checks on electrical control cabinets to detect loose wiring or overheating drives.

   • Re-align main starwheel transfer turrets using laser optical tools to maintain exact center-line pitch.

Operational Efficiency Tip: Integrating automated CIP spray balls and dynamic CIP return pumps into the main machine frame reduces chemical rinse consumption by 22 percent while shortening total sanitation changeover cycles by up to 30 minutes per shift.

Summary and Conclusion

In summary, an advanced juice filling machine represents a highly technical blend of precision mechanical engineering, fluid dynamics, and modern industrial automation. By integrating synchronized container handling, thermal pasteurization control, sterile volumetric dosing, and intelligent capping systems, modern packaging plants achieve extreme operational efficiency while safeguarding product taste and shelf-life. Investing in high-grade stainless steel construction, automated CIP protocols, and advanced blowing-filling-capping blocks ensures long-term operational resilience, lowest total cost of ownership, and total compliance with strict global food safety standards.
