How to Reduce Foaming During CSD Filling

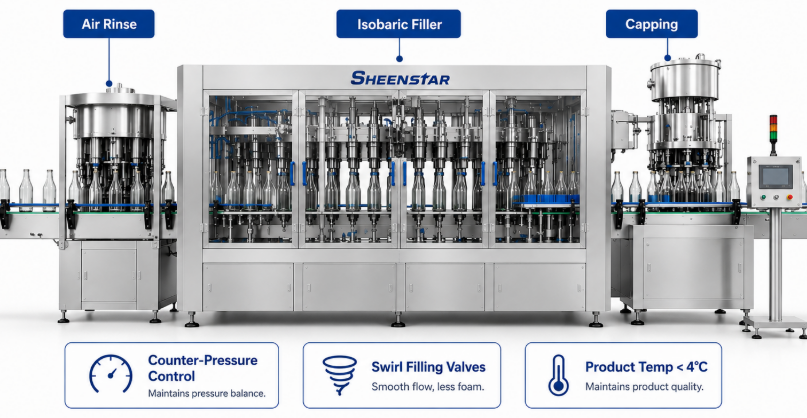

Reducing foaming during carbonated soft drink (CSD) filling requires systematic fluid mechanical control across the entire filling architecture, specifically maintaining precise counter-pressure equilibrium, chilling beverage temperatures below 4°C, optimizing laminar flow dynamics through swirl-plate filling valves, maintaining consistent mechanical snifting profiles, and deploying an integrated glass bottle CSD filling line engineered with sanitary Isobaric pressure compensation systems.

At a Glance

1. Why Foaming Happens During CSD Filling

Foaming during carbonated soft drink processing occurs when dissolved carbon dioxide rapidly desorbs from the liquid phase into the gaseous phase due to sudden pressure drops, elevated product temperatures, boundary wall shear friction, or mechanical turbulence introduced during liquid transfer.

The core physics governing beverage carbonation relies upon dynamic thermodynamic equilibrium between liquid water, dissolved carbonic acid, and gaseous carbon dioxide. In an industrial production environment, maintaining this equilibrium is a primary engineering challenge. When carbonated liquid flows through a filling apparatus into an empty container, any perturbation in the pressure gradient causes dissolved CO₂ molecules to coalesce into micro-bubbles. This phenomenon, known as degassing or nucleation, is accelerated when kinetic energy is imported into the liquid stream through abrupt direction changes, high velocity liquid impact, or surface roughness inside transfer piping and container walls. On an advanced Glass bottle CSD filling line, liquid dynamics must be governed by precise fluid mechanical parameters to prevent catastrophic volume loss and net fill weight variation caused by uncontrolled foam expansion.

From an engineering standpoint, foam generation during filling creates severe operational inefficiencies. When carbonated foam expands into the container neck zone, it displaces the intended liquid volume, leading to under-filled packages, improper fill heights, and excessive beverage yield loss. Furthermore, foam presence during the bottle transfer to the crowner or capper causes liquid sloshing, severe bottle neck contamination, and increased risk of microbiological spoilage around the sealing lip. Understanding the root causes of foaming requires a detailed evaluation of fluid thermodynamics, container surface chemistry, and filling machine mechanical interactions across every phase of the dosing cycle.

To systematically diagnose and eliminate foam formation during carbonated beverage bottling, plant engineers must examine three distinct operational vector categories: molecular gas behavior under variable pressure/temperature profiles, physical surface friction generated by the internal geometry of the container, and mechanical shearing forced by liquid dosing valves and product distribution pumps.

The Behavior of CO₂ in Carbonated Drinks

Dissolved carbon dioxide behavior in water-based beverage matrices is strictly governed by Henry's Law, which stipulates that at a constant temperature, the amount of dissolved gas in a liquid is directly proportional to the partial pressure of that gas above the liquid. Carbon dioxide solubility increases exponentially as beverage temperature decreases and as system operating pressure increases. In typical carbonated soft drink formulations, CO₂ concentration ranges between 3.0 to 9.0 grams per liter (1.5 to 4.5 volumes of gas). When a pressurized liquid containing dissolved gas experiences a sudden pressure reduction down to atmospheric levels without counter-pressure control, the liquid matrix becomes hyper-saturated. This thermodynamic instability forces gas out of solution, generating dense micro-foaming within milliseconds.

Packaging Material Influence

The physical structure and surface characteristics of the container play an influential role in foam nucleation. Glass containers exhibit surface energy profiles and microscopic surface roughness distinct from PET or aluminum cans. Internal micro-fissures, manufacturing defects, or particulate residue on glass sidewalls act as energetic nucleation sites where gas bubbles readily anchor, expand, and detach. Furthermore, the thermal inertia of heavy-wall glass containers can elevate the temperature of incoming cold beverage product upon contact if containers are stored in unconditioned warehouse spaces. Deploying an automated Glass bottle CSD filling line equipped with pre-rinse thermal conditioning nozzles reduces surface tension differentials and stabilizes container contact temperature prior to liquid valve actuation.

Machine-Related Causes

Mechanical machinery defects and suboptimal valve settings represent a major cause of chronic foaming during commercial bottling operations. Mechanical factors include vibration transmitted through the main filler carousel pitch circle, worn elastomeric sealing gaskets inside filling valves, misaligned container centering bells, abrupt liquid deceleration, and incorrect snifting exhaust profiles. If the filling valve fails to achieve a completely airtight seal against the bottle finish during pre-pressurization, pressure leaks break the isobaric state, provoking violent liquid flashing and dense foam generation inside the filling tube assembly.

2. Temperature Control: The Foundation of Foam Reduction

Maintaining consistent product temperatures between 2°C and 4°C throughout the beverage preparation, storage, and filling circuit provides the foundational thermodynamic stability required to maximize CO₂ solubility and eliminate flash foaming during isobaric container filling.

Temperature control represents the primary operational variable governing gas stability in carbonated beverage production. According to chemical thermodynamics, the absorption coefficient of carbon dioxide in aqueous solutions drops significantly as fluid temperatures elevate. For instance, at 2°C and a pressure of 3.0 bar, water can retain approximately 6.5 grams of dissolved CO₂ per liter; elevating the temperature to 12°C at the same pressure reduces solubility by over 30 percent. When warm product enters an isobaric filling bowl, the reduction in molecular binding force between water molecules and carbon dioxide causes immediate gas detachment. Consequently, high-speed beverage production on a modern Glass bottle CSD filling line relies upon high-precision plate heat exchangers and insulated product recirculation loops to guarantee that product delivered to the filling bowl remains strictly within target thermal thresholds.

In addition to beverage product temperature management, container thermal dynamics must be managed with equal precision. Cold carbonated beverage entering a warm glass bottle experiences immediate localized heat transfer at the boundary layer. Glass possesses high specific heat capacity, meaning warm glass bottles retain substantial thermal energy. When a 2°C liquid contacts a 25°C glass inner wall, the localized fluid interface rapidly heats up to 8°C or higher, creating a localized drop in gas solubility right at the container boundary. This thermal shock triggers flash nucleation along the container wall, generating foam that rises rapidly toward the neck finish. Automated bottle rinsing systems with chilled rinse water are frequently integrated into high-speed line layouts to pre-cool container walls prior to turret entry.

European beverage manufacturers and leading international packaging plant designers place heavy emphasis on energy-efficient thermal management systems that integrate secondary glycol chilling circuits with closed-loop fill bowl monitoring. These advanced configurations feature RTD temperature sensors installed directly inside the filler bowl fluid cavity, continuously communicating with modulating liquid supply valves. If the beverage temperature inside the line drifts above 4.5°C, automated interlocks pause filler carousel indexing or divert product to a secondary holding loop until thermal equilibrium is restored. This precise temperature control protects net filling accuracy, minimizes product waste, and ensures continuous high-efficiency line performance.

Thermodynamic Maintenance Principle: Ensure plate heat exchanger glycol differential pressures are calibrated bi-weekly and temperature sensor probes inside the central distribution manifold undergo 3-point ice bath validation every 500 operating hours to prevent undetected thermal drift across high-speed filling runs.

3. Pressure Control: Balancing Flow and CO₂ Stability

Precise multi-stage isobaric pressure control balances the differential pressure between the filler bowl gas header and the container interior, ensuring smooth, non-turbulent gravity liquid transfer under equalized counter-pressure conditions.

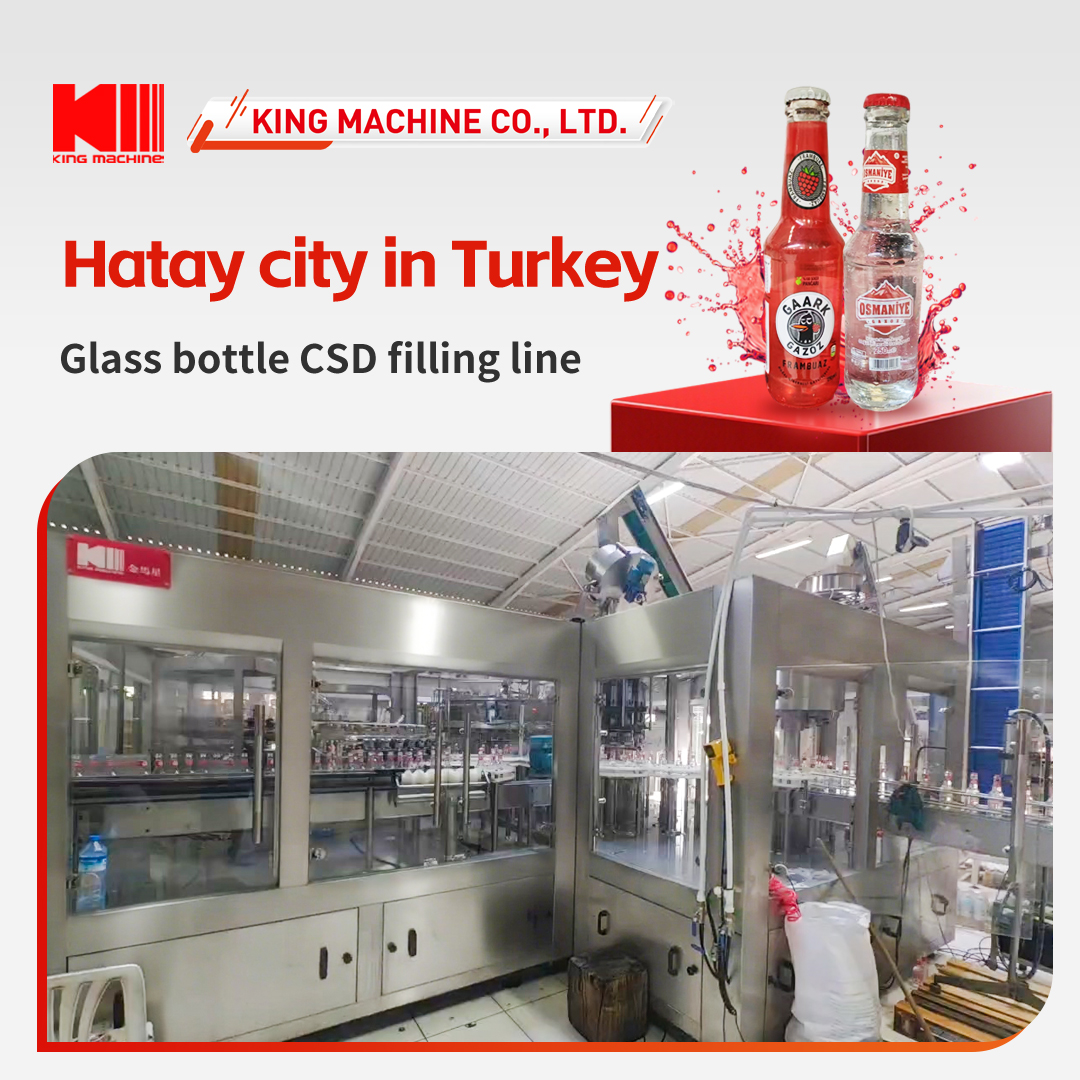

The fundamental operational principle of isobaric carbonated beverage dosing involves equalizing the internal gas pressure of the empty container with the headspace pressure of the main liquid storage bowl prior to opening the liquid dosing port. On a contemporary high-speed Glass bottle CSD filling line, this process is executed across multiple timed phases managed by electro-pneumatic mechanical valve sequences. First, the container is raised and sealed tightly against the centering bell. Next, pre-evacuation vacuum pumps pull air out of the bottle to eliminate oxygen picking up and prevent pressure spikes during pressurization. Subsequently, sterile CO₂ counter-pressure gas is injected into the container until internal bottle pressure matches the exact isobaric operating level of the filler bowl (typically between 2.5 bar and 4.5 bar gauge pressure).

Once exact pressure equalization is achieved, mechanical springs or pneumatic actuators lift the liquid valve stem. Because the gas pressure inside the container matches the pressure in the bowl headspace, the carbonated beverage does not flash or surge violently. Instead, the liquid flows smooth and steady into the bottle driven solely by gravity static head pressure. To maintain stable liquid flow velocities without introducing liquid turbulence, gas displaced by incoming liquid must be continuously evacuated through a dedicated return gas vent tube back into the filler bowl headspace or a separate gas collector manifold. If the return gas passage experiences restrictions or pressure oscillations, liquid velocity fluctuates dramatically, causing boundary layer separation and dense foam expansion.

Following the completion of the liquid dosing phase, pressure control transitions into the critical snifting (pressure relief) phase. Direct exposure of a fully carbonated liquid at 4.0 bar to ambient atmospheric pressure (1.0 bar) would result in instant explosion of foam out of the bottle neck finish. To prevent this, multi-stage electro-pneumatic snifting valves execute a controlled, multi-step pressure reduction. The initial snift reduces internal headspace pressure from 4.0 bar down to an intermediate hold pressure of approximately 1.2 to 1.5 bar, allowing micro-bubbles trapped in the liquid surface layer to coalesce peacefully. A secondary slow exhaust phase then bleeds off the remaining headspace pressure down to atmospheric level before the container unseals from the centering bell and exits to the discharge starwheel.

4. Filling Valve Design: Engineering Out the Foam

Modern filling valve engineering eliminates foam generation through specialized swirl-flow liquid deflectors, electro-pneumatically controlled dual-speed valve spools, and polished laminar flow channels that minimize internal fluid shear stress.

The design architecture of the liquid filling valve represents the mechanical core of any high-performance packaging line. Historically, simple mechanical spring-loaded counter-pressure valves relied on fixed mechanical trip cams to open and close fluid paths. However, modern high-speed beverage machinery utilizes sophisticated electro-pneumatic filling valves equipped with independent solenoid actuators, electronic flow meters, or high-precision magnetic level probes. On an advanced Glass bottle CSD filling line, these electronic filling valves allow line operators to precisely program liquid dosing parameters based on specific beverage carbonation levels, viscosity parameters, and container geometric profiles, eliminating mechanical backlash and ensuring repeatable laminar flow kinetics.

A primary feature of foam-mitigating valve design is the inclusion of an internal liquid spreader or swirl plate located at the discharge tip of the valve stem. Rather than allowing carbonated liquid to drop straight down into the center of the bottle in a turbulent free-fall stream, the swirl deflector directs incoming liquid outward against the internal glass sidewall. The liquid forms a continuous, thin umbrella film that spirals down the container wall smooth and steadily. This wall-guided laminar flow distribution eliminates kinetic impact forces at the bottom of the bottle, dramatically reducing shear stress and keeping dissolved CO₂ securely locked within the liquid matrix throughout the high-speed fill phase.

Furthermore, state-of-the-art filling valves incorporate dual-speed filling technology. At the start of the liquid dosing cycle, the valve opens to a restricted slow-flow phase (approx. 20-30% of maximum volumetric flow rate) to establish a stable liquid heel at the bottom of the bottle without splash turbulence. Once the lower curved base of the bottle is covered, the electro-pneumatic actuator shifts to full-open fast-flow mode to maximize throughput efficiency. As the liquid level approaches the final fill height, the valve shifts back to a slow-flow finish phase before closing completely. This controlled velocity curve minimizes surface wave formation, preventing foam creation right at the critical neck finish area where fill volume accuracy is determined.

5. Integration of Line Design and Machine Settings

Integrating mechanical line design with synchronized machine motion controls eliminates container mechanical shock, line speed surges, and structural vibration, protecting carbonated liquid stability across high-speed transportation turrets.

Eliminating foam during high-speed bottling requires looking beyond the filling valve itself to evaluate the holistic mechanical design of the container handling carousel and conveying transport equipment. Mechanical vibration and physical impact forces experienced by containers during high-speed transfer represent major external drivers of foam nucleation. When a glass bottle containing carbonated liquid experiences abrupt lateral acceleration, jerking motion on conveying belts, or hard mechanical contact in transfer starwheels, pressure waves propagate through the liquid column. These acoustic and mechanical energy inputs induce instant gas bubble detachment. In high-output applications involving a Glass bottle CSD filling line, mechanical motion must be engineered to deliver ultra-smooth, continuous pitch-line synchronization from the bottle inlet feed screw to the capper discharge table.

European technical standards and global engineering best practices emphasize the adoption of direct-drive servo-motor configurations across all carousel turrets, infeed worm screws, and starwheels, completely replacing legacy gearboxes and mechanical drive shafts. Servo-driven electronic synchronization allows continuous monitoring and smooth adjustment of acceleration and deceleration curves. If a downstream packaging machine experiences a temporary slowdown, the entire filling system ramps down smoothly along a pre-programmed parabolic curve rather than coming to a sudden, harsh mechanical stop. Preventing sudden stop-and-go mechanical shocks keeps liquid inside partially filled bottles motionless, suppressing foam formation during unexpected line speed adjustments.

Furthermore, machine frame structural rigidity and acoustic resonance damping play vital roles in high-speed filling performance. Heavy steel base frames filled with concrete or specialized vibration-damping compounds isolate the main filling bowl and container lift cylinders from floor-transmitted plant vibrations. Combined with precision CNC-machined synthetic starwheels featuring pocket shapes custom-profiled to match exact glass bottle outer diameters, structural vibration transfer to the liquid column is virtually eliminated. This mechanical stability ensures that carbonated liquid remains in a calm, undisturbed state throughout pre-evacuation, counter-pressurization, liquid filling, and snifting routines.

6. Operational Methods to Minimize Foam

Executing rigorous operational discipline—including hot CIP chemical sanitation, total water deaeration, container surface wetting protocols, and routine elastomeric seal replacement—ensures long-term operational freedom from chronic production foaming.

While mechanical engineering and automated pressure controls form the hardware foundation for foam suppression, operational protocols executed by plant operating personnel determine daily production efficiency. A critical operational factor often overlooked is line clean-in-place (CIP) sanitation quality. Residual beverage deposits, sugar syrup crystallization, mineral scale buildup, or microbiological biofilm inside filling valve flow passages create localized micro-roughness. These deposits act as high-energy nucleation points that disrupt laminar fluid flow and trigger intense foam formation during filling. Running automated, temperature-controlled CIP wash cycles utilizing caustic soda (NaOH) followed by acid sanitization restores stainless steel surface smoothness (Ra < 0.4 µm) and guarantees hygienic, friction-free liquid passages.

Water quality and dissolved oxygen (DO) management represent another crucial operational vector in soft drink manufacturing. Raw water used for beverage blending contains dissolved ambient atmospheric gases, primarily nitrogen and oxygen. Because nitrogen exhibits low solubility in water, un-deaerated process water releases gas micro-bubbles when subjected to carbonation pressure drops, triggering massive secondary foaming across the entire filling carousel. Deploying multi-stage vacuum deaeration towers upstream of the syrup proportioning unit reduces dissolved oxygen levels below 0.5 ppm, securing a stable liquid matrix that absorbs and holds carbon dioxide gas efficiently during high-speed bottling on a Glass bottle CSD filling line.

Finally, preventive maintenance routines focusing on elastomeric components represent a crucial defense against unexpected foam spikes. Filling valve seals, snifting valve diaphragms, vacuum line gaskets, and centering bell seals are subjected to continuous mechanical flexing, aggressive sanitizing chemicals, and high operating pressures. Over operational time, micro-cracks and material hardening occur. A compromised seal allows minute pressure leaks during counter-pressurization, breaking the required isobaric pressure balance and causing instant beverage flashing. Establishing strict preventive maintenance schedules to replace all soft elastomeric sealing elements every 2,000 operating hours guarantees complete system pressure integrity and uninterrupted high-speed production capability.

Operational Troubleshooting Protocol: In the event of localized intermittent foaming on specific filling heads, immediately execute a dry pressure-decay test on the affected valve circuit to detect internal seat leakage or degraded snifting diaphragms prior to adjusting global filler bowl pressure settings.
