A beer filling machine (or brewery filling machine) primary functions to efficiently, precisely, and hygienically dispense carbonated beer into containers such as bottles, cans, or kegs while strictly preserving product quality through minimal oxygen pickup, exact volumetric accuracy, controlled counter-pressure filling, and reliable seal integrity.
Section | Summary |
What is a beer-filling machine? | An exploration of the fundamental identity, mechanical design, counter-pressure mechanics, and core operational principles behind automated brewery bottling systems. |
Benefits of using filling machines | A comprehensive analysis detailing how automated filling systems optimize productivity, reduce dissolved oxygen levels, eliminate beer wastage, and elevate product safety. |
Different solutions for beer bottle-filling machines | A breakdown comparing manual, semi-automatic, fully automatic rotary, and inline Isobaric filling technologies tailored to distinct production capacities. |
Beer bottle filling machine auxiliary equipment | An in-depth overview covering essential supporting equipment, including rinser-monoblocks, cappers, pasteurizers, and conveyor integration. |
Conclusion | A final evaluation synthesizing the operational value of advanced filling equipment within modern industrial brewing lines. |

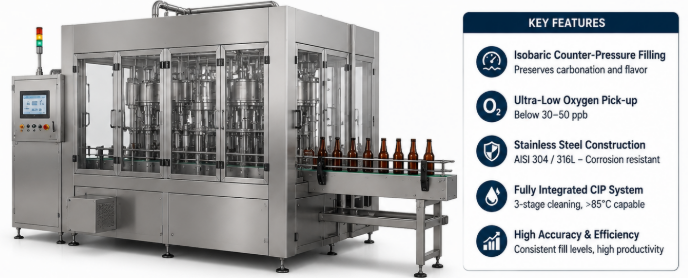

A beer filling machine is an engineered industrial apparatus specifically constructed to transfer carbonated beer from storage tanks into commercial packaging vessels like glass bottles, aluminum cans, or metal kegs under controlled pressure without losing carbon dioxide or introducing excessive dissolved oxygen.
In modern commercial brewing environments, packaging represents a critical transition where the physical and sensory integrity of craft beer must be preserved. A dedicated brewery filling machine achieves this by utilizing counter-pressure (Isobaric) filling technology. Standard atmospheric liquid fillers are wholly unsuitable for carbonated beverages, as exposure to unpressurized ambient air leads to instant degassing, intense foaming, and severe liquid loss. The Isobaric mechanism equalizes the internal pressure within the bottle to match the pressure of the bright beer tank before liquid admission occurs, maintaining carbonation balance throughout the process.
From an engineering perspective, modern fillers operate within a sterile, closed-loop fluid circuit. The structural architecture typically features a stainless-steel fluid manifold, pneumatically controlled filling valves, lifting cylinders, and an integrated CIP (Clean-In-Place) sanitation circuit. During operation, the container is raised and sealed tightly against the filling valve gasket. The filling cycle executes a sequence: evacuation of air, pre-evacuation or purging with inert gas (such as CO2), isobaric pressurization, gravity-assisted or mechanical liquid dosing, pressure relief (snifting), and controlled bottle lowering.
European brewery engineering trends emphasize minimizing Dissolved Oxygen (DO) pick-up during this sequence. Craft beer consumers highly prioritize flavor stability and shelf-life, driving manufacturers to design low-oxygen filler bowls with double pre-evacuation vacuum systems. Furthermore, modern machines prioritize quick-change neck-handling starwheels, automated CIP dummy bottles, and servo-driven lifting pedestals to ensure efficient switching between variable bottle geometries without manual valve recalibration.
Parameter / Component | Technical Specification / Material Standard | Functional Purpose |
Core Structural Frame | AISI 304 / 316L Stainless Steel | Provides corrosion-resistant structural integrity and washdown tolerance. |
Filling Valve Type | Isobaric Mechanical / Pneumatic Valve | Maintains equilibrium pressure to prevent $CO_2$ breakout during filling. |
Oxygen Pick-up Rate | Below 30 to 50 ppb (parts per billion) | Prevents premature oxidation and extends craft beer shelf-life stability. |
Operation Pressure Range | 0.2 to 0.4 MPa | Manages carbonated liquid delivery under stable pneumatic control. |
Sanitation Compatibility | Fully Integrated 3-Stage CIP Loop | Enables thermal and chemical sterilization at temperatures exceeding 85°C. |
Operational Principle Notice: The key to preventing foam eruption during high-speed bottling is the "snifting" stage. After the liquid reaches the precise fill height defined by the vent tube, the gas space above the liquid remains pressurized at equalized levels. The snifting valve slowly vents this pressurized gas to atmospheric levels in a controlled, multi-stage exhaust process. Rushing this pressure reduction causes rapid nucleation and violent boil-over, resulting in volume inconsistency and excessive product waste.
Utilizing automated beer filling machines significantly accelerates packaging throughput, minimizes liquid oxidation, ensures uniform fill levels, and dramatically cuts operational labor costs across commercial brewery operations.
Micro-Oxygenation Reduction and Extended Shelf-Life
The primary enemy of packaged craft beer is dissolved oxygen ($DO$). Manual or open-air filling exposes beer to atmospheric oxygen, initiating unwanted oxidative reactions that result in cardboard-like off-flavors, haze formation, and color darkening within weeks. Automated brewery filling machines utilize dual pre-evacuation vacuum systems prior to liquid injection. By drawing a vacuum on the empty bottle, flushing it with carbon dioxide, drawing a second vacuum, and repressurizing it, residual oxygen is virtually eliminated. This precise control reduces total package oxygen to extremely low levels, protecting delicate hop aromas and extending retail shelf stability.
Precise Volumetric Accuracy and Reduced Waste
Manual or sub-standard packaging methods suffer from inconsistent volumetric levels caused by foam variations, temperature fluctuations, and operator error. Modern counter-pressure fillers utilize precisely calibrated vent tubes or electronic magnetic flow meters to achieve high filling accuracy. By preventing foam eruption through controlled depressurization cycles, liquid loss is reduced to negligible fractions of a percent. This liquid recovery directly improves profit margins by preserving yield from every brew batch.
Exceptional Processing Speed and Industrial Scalability
Industrial beer packaging requires high-throughput speed to process large volume batches fresh from bright tanks. Automated rotary filling systems can fill, level, and seal thousands of units per hour continuously. Integrated mechanical drive systems synch bottle infeed, filling, capping, and discharge in an uninterrupted automation loop. This high throughput reduces processing bottlenecks, allowing breweries to scale distribution networks while keeping labor requirements minimal.
Superior Microbiological Hygiene and CIP Compliance
Commercial hygienic regulations demand complete sterility across all beverage contact surfaces. Modern automated fillers are constructed from sanitary AISI 316L stainless steel with ultra-smooth internal surface finishes. Integrated dummy-bottle systems enable fully automated Clean-In-Place (CIP) and Sterilization-In-Place (SIP) routines. Hot caustic and acid rinses circulate through internal valves, manifolds, and contact nozzles without requiring manual disassembly, eliminating bacterial contamination risks such as Lactobacillus or Pediococcus.
Performance Metric | Manual Packaging Method | Automated Brewery Filling System |
Operational Speed (Bottles/Hour) | 100 to 400 BPH | 1,500 to 24,000+ BPH |
Dissolved Oxygen Pick-up (DO) | 100 to 300+ ppb | < 30 to 50 ppb |
Filling Volumetric Precision | High Variation (± 5 to 10 mL) | Ultra-precise (± 1 to 2 mL) |
Labor Requirement | High Manual Effort | Low (Single Operator Monitoring) |
CIP Sterilization Efficiency | Basic Manual Sanitization | Automated Closed-Loop CIP/SIP |
European brewery operations prioritize energy efficiency, water consumption per hectoliter, and minimal footprints when selecting packaging setups. Integrating high-performance fillers directly within complete Turnkey Craft Beer Brewery Production Line Equipment ensures seamless mechanical synchronicity between bright beer cellar tanks, bottle rinsers, and final secondary packaging systems.
Beer bottle-filling machine solutions range from small-scale manual fillers and linear semi-automatic setups to high-speed fully automatic rotary Isobaric monoblock systems engineered for high-volume industrial breweries.
Manual and semi-automatic linear filling systems represent an entry-level solution primarily suited for pilot plants, nanobreweries, or experimental batch testing. These units typically feature 2 to 6 inline counter-pressure valves mounted on a manual frame. Operators manually position empty bottles, actuate pneumatic levers to trigger pre-evacuation and filling, and manually transfer filled bottles to a standalone capping station. While affordable and compact, throughput is limited, and exposure to ambient air between filling and capping results in higher oxygen pick-up compared to fully automated closed systems.
Inline automatic filling systems automate bottle transportation via a linear conveyor, utilizing indexing gates to stop groups of 4 to 12 bottles under a bank of filling heads. Automated pneumatic cylinders seal the bottle mouths against the valves, executing automated pre-evacuation, CO2 purging, isobaric filling, and snifting cycles. After filling, the container group moves linearly to an inline capper. This configuration provides a balanced solution for small-to-medium craft breweries seeking automated operation, moderate footprint efficiency, and moderate speed without the complex mechanical costs of rotary systems.
Rotary Isobaric fillers represent the benchmark technology for medium-to-large industrial brewing facilities. In a rotary monoblock architecture, rinsing, filling, and capping stations are unified around a central rotating carousel powered by a single main motor. Bottles enter via timing screws and starwheels, transferring continuously through each processing module. Because filling and crowning occur uninterrupted along a continuous circular movement path, these machines achieve high operating speeds with minimal liquid agitation. Furthermore, the distance between the filling valve and the capping head is minimized, allowing immediate jetting (fobbing) and capping to effectively displace neck-space air.
Feature / System Type | Manual / Semi-Automatic Linear | Automatic Inline System | Automatic Rotary Monoblock System |
Production Capacity | 100 to 800 BPH | 1,000 to 3,500 BPH | 3,000 to 24,000+ BPH |
Floor Space Requirement | Compact (< 3 m²) | Moderate (4 to 8 m²) | Larger Footprint (> 10 m²) |
Machine Motion | Stationary / Manual | Intermittent Linear Indexing | Continuous High-Speed Rotary |
Oxygen Control Level | Basic | Moderate | Exceptional (Double Pre-Evacuation) |
Container Flexibility | High (Manual Adjustment) | Moderate | Requires Toolless Starwheel Change |
Why is the rotary monoblock configuration favored by leading equipment manufacturers? European and global commercial clients prioritize maximum neck-space oxygen exclusion above almost all other features. In a rotary monoblock filler, high-pressure hot water jetting is applied to the bottle neck immediately as it leaves the filling valve. This induces controlled foaming ("fobbing") that forces foam up to the lip of the bottle mouth, driving out atmospheric air just milliseconds before the crown cap is pressed into place.
Auxiliary equipment for beer bottle-filling machines includes container bottle rinsers, high-pressure foam jetters, automatic crown cappers, flash pasteurizers, labeling systems, and integrated conveyancing networks that form a cohesive packaging line.
An efficient brewery filling line relies on auxiliary machinery working in precise harmony with the core filling unit. Before entering the filling carousel, empty glass bottles must undergo thorough cleaning inside an automated rinsing module. Rotary rinser units invert bottles 180 degrees over specialized injection nozzles that spray sterile water, air, or CO2 gas to purge dust, glass particles, or ambient residues.
Following filling, the bottle immediately moves to the closure module. Glass beer bottles rely primarily on crown caps or swing-top stoppers, whereas aluminum cans utilize rotary seamers. Crown capping turrets apply controlled vertical force onto steel crown caps, forming a tight hermetic seal over the glass bottle finish.
To achieve long-term microbiological shelf stability without relying on preservative additives, filled and sealed bottles often pass through downstream pasteurization systems. Flash pasteurization units heat the beer prior to filling, while tunnel pasteurizers convey filled and sealed containers through controlled hot water spray zones to eliminate wild yeasts and bacteria.
Finally, bottles pass through air-knife drying stations to remove surface condensation before entering automatic pressure-sensitive or cold-glue labeling machines. Wrapping systems, carton packers, and automated palletizers finish the packaging workflow at the end of the line.
Auxiliary Equipment | Primary Operational Function | Critical Quality Impact |
Bottle Rinser / Air Blower | Cleans internal bottle surfaces with sterile fluid or compressed air | Prevents physical and microbial contamination prior to filling |
High-Pressure Water Jetter | Injects precise warm water droplets into bottle neck post-fill | Induces fobbing to evacuate neck-space air and lower oxygen levels |
Automatic Crown Capper | Crimps steel crown caps onto bottle finish under mechanical torque | Guarantees a hermetic seal to retain carbonation and block oxygen entry |
Tunnel / Flash Pasteurizer | Applies controlled heat treatment (PU Units) to packaged beer | Eliminates residual yeast and spoilage microorganisms for shelf stability |
Automatic Conveyor Network | Coordinates container transportation between line modules | Prevents bottle collisions, fallen units, and line stoppage bottlenecks |
Maintenance & Operation Tip: To maintain consistent seals and prevent glass breakage during crowning, technicians should inspect the wear profile of the capping crimping dies weekly. Incorrectly adjusted capper height or worn crimp rings cause micro-fractures in the glass neck finish or uneven cap deformation. This leads to slow carbonation leakage, premature beer oxidation, and potential bottle bursting during downstream tunnel pasteurization.
Achieving complete operational harmony across these packaging modules requires a fully synchronized system layout. Integrating these auxiliary systems with complete Craft Beer Fermentation and Brewing Systems provides unified PLC automation control, streamlined power distribution, and balanced line speed regulation across the entire facility.
A beer filling machine is a core industrial asset designed to safeguard beer freshness, preserve precise carbonation, eliminate dissolved oxygen, and maximize packaging efficiency within modern commercial brewing operations.
Selecting the optimal brewery filling machine requires evaluating target production capacities, desired container formats, total package oxygen thresholds, and available floor space. From compact linear fillers for expanding craft outfits to high-speed rotary monoblock architectures integrated within complete Industrial Beer Packaging Line Systems, investing in precisionIsobaric engineering ensures every bottle reaches the end consumer exactly as the brewmaster intended.
